Radially Magnetized Vs. Axially Magnetized Magnetic Rings: What’s The Difference?

In many motors, sensors, and magnetic transmission devices, we often encounter a key component—the magnetic ring (or magnet ring). It may look like a simple circular ring, but different magnetization directions can lead to completely different performance and application scenarios.

The two most common magnetization methods are radial magnetization and axial magnetization.

Many people who first encounter them have questions: Why distinguish between radial and axial for the same ring shape? What are the differences? How do you choose in practice?

1. First, Understand "Magnetization Direction"

A magnetic ring is made from permanent magnet materials such as sintered NdFeB, bonded NdFeB, SmCo, etc. The material itself does not necessarily have significant magnetism; it needs to go through a "magnetization" process to align its internal magnetic domains in a certain direction, thereby exhibiting a stable external magnetic field.

"Magnetization direction" refers to the direction in which the magnetic domains are uniformly aligned inside the ring.

For a ring-shaped magnet, there are two main directions:

• Along the radius → radial magnetization;

•  Along the axis → axial magnetization.

This distinction seems simple, but it directly determines how magnetic field lines flow, how the field is distributed, and where it is best applied.

2. Radially Magnetized Rings

2.1 What is Radial Magnetization?

Radial magnetization means the magnetization direction is along the radius of the ring.

Common forms:

• Outer diameter surface is N pole, inner bore surface is S pole;

• Or vice versa: outer surface S, inner bore N.

That is, magnetic field lines mainly go from the outer surface, through the external space, and return to the inner bore; or from the inner bore, through the shaft/air gap, back to the outer surface.

2.2 Magnetic Field Characteristics

The magnetic poles of a radially magnetized ring are located on the inner and outer cylindrical surfaces, not on the end faces.

Typical features:

• Magnetic field distributes circumferentially;

• Generates a strong radial magnetic field in the air gap between the inner and outer diameters;

• Suited for mating with cylindrical structures such as shafts, rotors, and stators.

If it is a single-pole radial magnetization, the entire outer surface is one polarity and the inner bore the opposite. If it is multi-pole radial magnetization, the outer surface alternates N and S poles along the circumference, commonly used for high-precision position detection.

2.3 Main Applications

Radially magnetized rings are commonly found in:

• Permanent magnet motor rotors or stators;

• Magnetic couplings;

• Magnetic bearings;

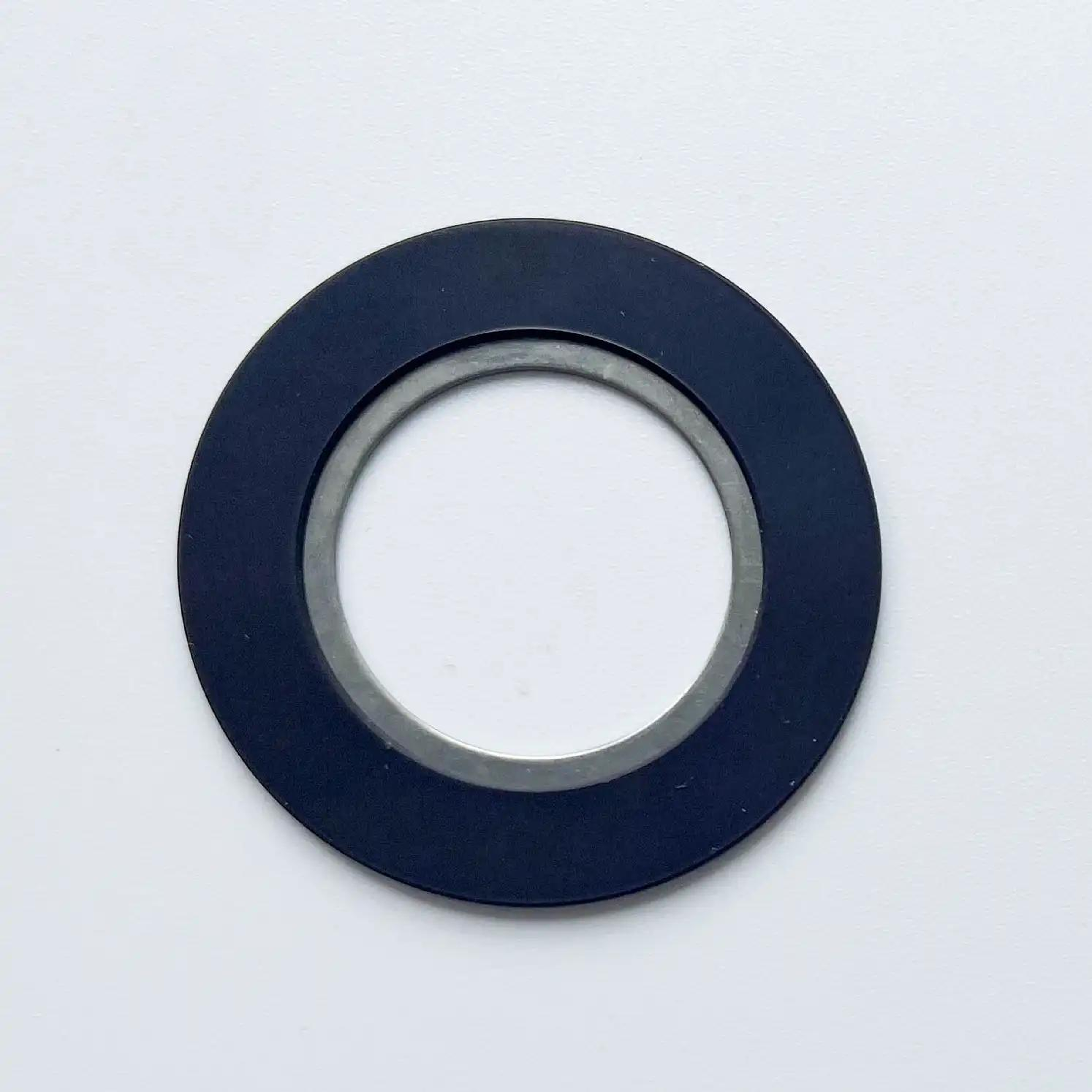

• Encoder magnet rings;

• Some Hall sensors and angle sensors;

• Magnetic clutches.

For example, in brushless motors, the rotor magnet ring is often radially magnetized, so that when the stator windings are energized, they interact with the radial field to produce tangential force, driving rotation.

2.4 Advantages and Limitations

Advantages:

• Field direction matches rotational motion well;

• Suitable for cylindrical air-gap structures;

• Multi-pole radial magnetization enables high-precision angle detection.

Limitations:

• High-performance radially oriented sintered rings are more difficult and costly to manufacture;

• Requires demanding magnetization fixtures and processes;

• If isotropic materials are used, magnetic performance may be lower than anisotropic ones.

3. Axially Magnetized Rings

3.1 What is Axial Magnetization?

Axial magnetization means the magnetization direction is along the axis of the ring.

Typically:

• Top end face is N pole, bottom end face is S pole;

• Or top S, bottom N.

Magnetic field lines mainly go from one end face, through the external space, and return to the other end face.

3.2 Magnetic Field Characteristics

The magnetic poles of an axially magnetized ring are on the two end faces.

Typical features:

• Field distributes along the axial direction;

• Produces a strong axial magnetic field near the end faces;

• Suitable for end-face attraction, planar air gaps, or axial air-gap structures.

If two axially magnetized rings are placed with like poles facing each other, they repel; with opposite poles facing, they attract.

3.3 Main Applications

Axially magnetized rings are commonly found in:

• Loudspeaker magnetic circuits;

• Magnetic chucks and fixtures;

• Axial-flux motors;

• Hall switch trigger magnets;

• Magnetic proximity switches;

• Magnetic stirrers, magnetic pumps, etc.

For example, many circular speaker magnets are axially magnetized ring magnets; the voice coil moves in the axial field to drive the diaphragm to produce sound.

3.4 Advantages and Limitations

Advantages:

• Manufacturing process is relatively simple, usually lower cost;

• Suited for end-face attraction and axial air-gap structures;

• Pole direction is easy to identify and assemble.

Limitations:

• In cylindrical air gaps requiring radial fields, field utilization is poor;

• Field decays quickly with larger axial distances;

• Multi-pole axial magnetization exists but is less common than multi-pole radial.

4. Core Differences Between Radial and Axial Magnetization

For a more intuitive comparison, here is a summary table:

Simple takeaways:

• Radial magnetization is about the circumference; axial magnetization is about the end faces.

• If your air gap is cylindrical (e.g., between rotor and stator), radial is usually preferred.

• If your air gap is planar or end-face based (e.g., attraction, push-pull, axial-flux motor), axial is usually preferred.

5. Additional Factors in Practical Selection

Beyond the magnetization direction itself, consider the following:

5.1 Magnetic Circuit Design

A magnetic ring is not used in isolation; it works with yokes, shafts, housings, air gaps, etc., to form a complete magnetic circuit. The magnetization direction must match the overall circuit; otherwise, field utilization will be low.

For example, a radially magnetized ring used in an axial air gap will waste most of its field outside the effective working region.

5.2 Manufacturing Process and Cost

High-performance radially oriented sintered NdFeB rings, especially multi-pole ones, are more complex and costly than axially magnetized rings. If cost is sensitive, bonded rings or isotropic materials can be considered while still achieving the needed magnetization direction.

5.3 Magnetization Method

Radial magnetization usually requires specialized fixtures to direct the magnetizing field along the radius. Axial magnetization is relatively simpler and can be done with many standard magnetizers.

5.4 Operating Temperature and Stability

Different materials have different temperature tolerances (e.g., NdFeB, SmCo, ferrite). This is independent of magnetization direction but must be considered in the overall project.

6. Common Misconceptions

Myth 1: Radial magnetization always means outer N, inner S.
Not necessarily. It can be outer N/inner S or outer S/inner N, depending on the circuit design. Multi-pole radial magnetization is not a single polarity but alternates around the circumference.

Myth 2: Axially magnetized rings cannot be used for rotary motion.
They can, but for axial-flux structures. In an axial-flux motor, the ring’s end face faces the stator, and the air gap is axial – so axial magnetization is the right choice.

Myth 3: Radial is always better than axial.
There is no absolute "better" – only fitness for purpose. Even the best ring will underperform if used in the wrong air-gap direction.

7. Conclusion

The essential difference between radially and axially magnetized rings lies in the magnetization direction, which leads to different field distributions, suitable air-gap structures, and typical applications.

Remember two simple rules:

• Cylindrical air gap → choose radial;

• End-face air gap → choose axial.

In real projects, don’t look at the ring in isolation – consider the magnetic circuit, assembly space, process conditions, and cost as a whole. Once you understand these two magnetization methods, many selection issues become much clearer.
