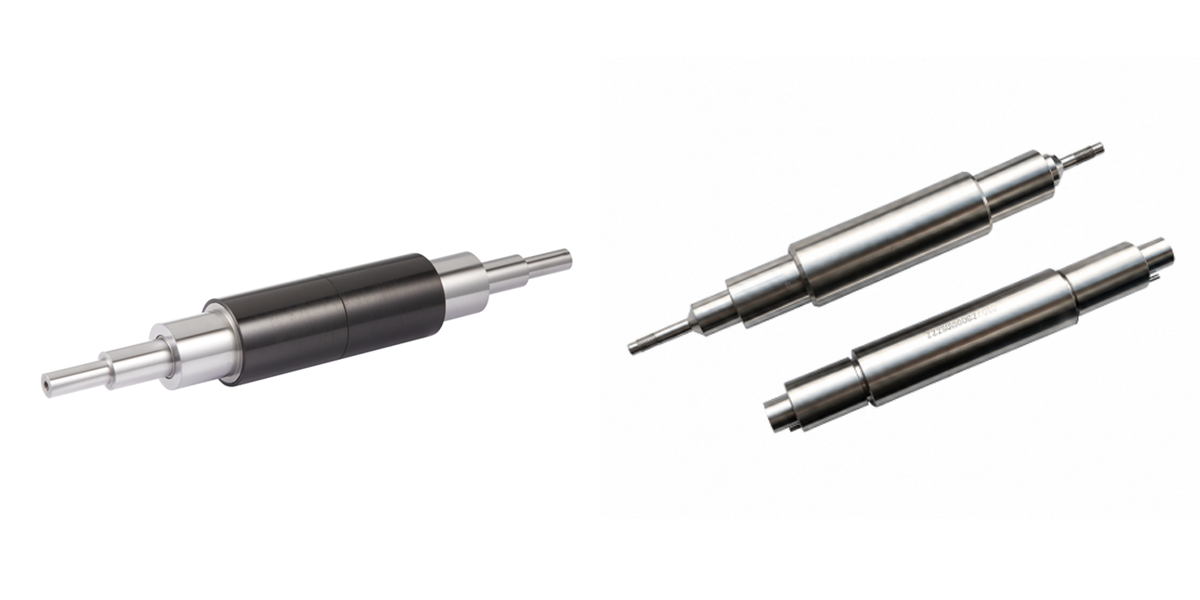

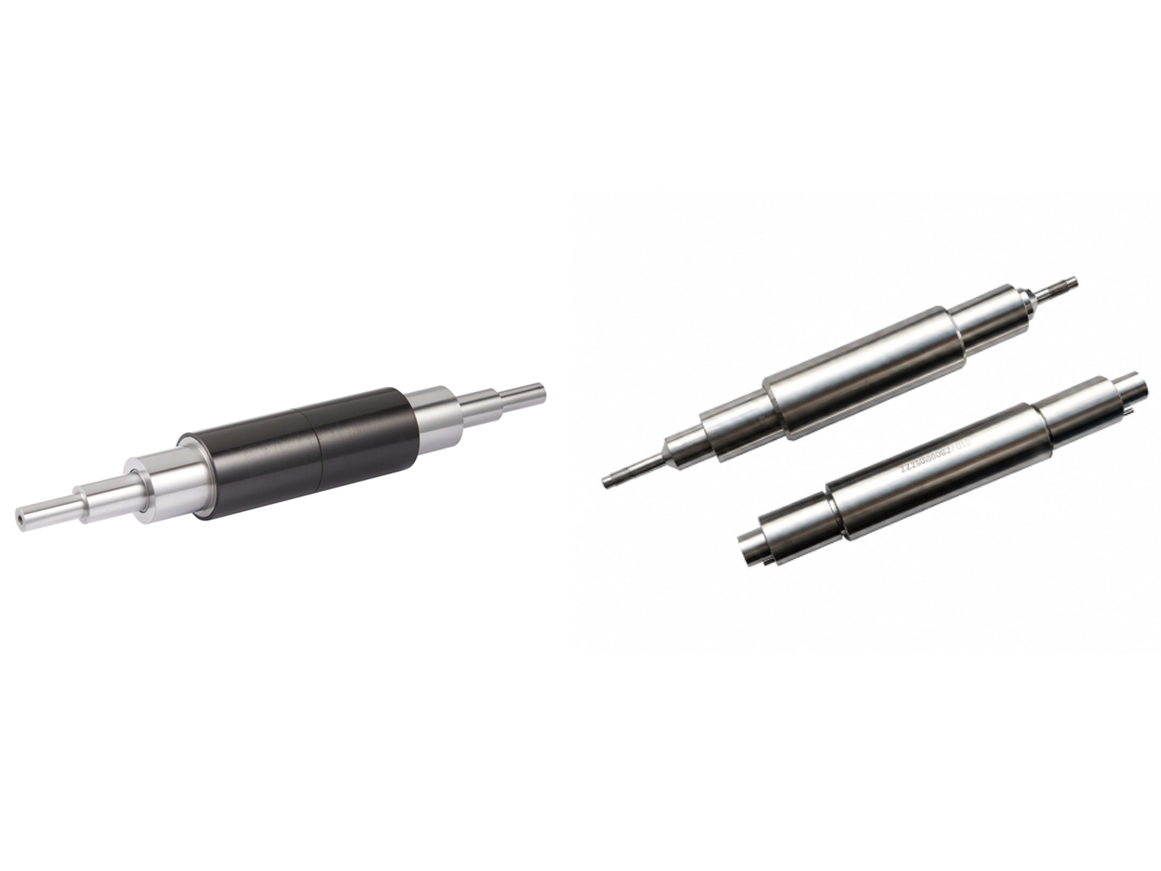

Carbon Fiber Sleeve Vs. Metal Sleeve: A Comparative Study on High-Speed Motor Rotor Performance

In fields such as high-speed motors, aviation electric drives, air compressors, and flywheel energy storage, rotor speeds are continuously increasing, and permanent magnets face significant tensile stress risks due to centrifugal forces. To protect the permanent magnets and ensure rotor structural integrity, engineers need to add a "sleeve" around the outer surface of the magnets. Currently, the two mainstream sleeve solutions are metal sleeves and carbon fiber composite sleeves. What exactly are their differences? And which holds the advantage in high-speed performance?

I. Why Do High-Speed Rotors Need Sleeves?

The permanent magnets on a permanent magnet motor rotor are typically sintered neodymium-iron-boron or samarium-cobalt materials. They have high compressive strength but relatively low tensile strength. During high-speed rotation, centrifugal force creates a tendency for the magnets to be "thrown" outward, especially at the rotor outer circumference where tensile stress is highest.

Without protection, as speed increases to a certain point, the magnets may develop cracks, fracture, or even fly apart, leading to catastrophic failure. The sleeve acts like a "binding band" that constrains the magnets, applying a pre-compression force to offset the centrifugal tensile stress generated during high-speed rotation.

Evaluating a sleeve solution typically considers several factors:

• Specific strength: ratio of material strength to density, determining high-speed capability;

• Thermal conductivity: ability to conduct heat away from the magnets and rotor;

•  Eddy current losses: tendency to generate heat under alternating magnetic fields;

•  Weight and moment of inertia: affecting rotor dynamics and acceleration performance;

• Manufacturing process, cost, and reliability.

II. Characteristics of Metal Sleeves

Common metal sleeve materials include stainless steel, titanium alloys, and superalloys. Their advantages are:

1. Simple processing, high precision
   Metal sleeves can be manufactured by mature processes such as turning, grinding, and shrink fitting, with easy control of dimensional accuracy and roundness, suitable for mass production.

2. Good thermal conductivity
   Metals generally have much higher thermal conductivity than carbon fiber composites. Heat generated inside the rotor can be conducted out through the sleeve, facilitating magnet cooling, reducing temperature rise, and avoiding high-temperature demagnetization.

3.  Good ductility, pre-failure warning
   Metallic materials typically undergo plastic deformation before overload failure, rather than sudden brittle fracture, providing some safety margin and warning time for the system.

However, metal sleeves have obvious drawbacks in high-speed scenarios:

• High density, significant self-induced centrifugal forces
  The metal sleeve itself has considerable mass, and the centrifugal stress it generates at high speed cannot be ignored. To withstand higher speeds, thickness often must be increased, which further adds mass and centrifugal force, creating a vicious cycle of "heavier and thicker, thicker and heavier."

•  Significant eddy current losses
  Metals are electrical conductors. Spatial and temporal harmonic magnetic fields in the air gap, caused by stator slot effects and current time harmonics, induce eddy currents in the metal sleeve, resulting in additional losses and heating. The higher the speed, the larger the pole-pair number, and the richer the harmonics, the more severe this issue becomes. Although titanium alloys have lower electrical conductivity that can reduce eddy currents, they also have poorer thermal conductivity and higher cost.

• Possible adverse effect on electromagnetic performance at high frequencies
  Metal sleeves have some shielding effect on high-frequency magnetic fields, which may affect the motor's electromagnetic performance, especially the magnetic field waveform of surface-mounted permanent magnet motors.

III. Characteristics of Carbon Fiber Composite Sleeves

Carbon fiber composite sleeves are typically made by winding high-strength carbon fiber tow around the outer surface of permanent magnets or the rotor core, followed by curing. Their greatest advantages are:

1. Extremely high specific strength, great high-speed potential
   Carbon fiber tensile strength can reach above 3000 MPa, while its density is only about one-quarter that of steel. Therefore, its specific strength is several times that of metals. This means that for the same sleeve weight, carbon fiber can withstand much higher centrifugal forces, allowing the rotor to achieve much higher surface linear speeds. In high-speed motors, ultra-high-speed flywheel energy storage, F1 racing ERS motors, etc., carbon fiber sleeves are almost standard.

2. Light weight, low moment of inertia
   Carbon fiber has low density, making the sleeve lighter, which helps reduce rotor moment of inertia, improving motor power density and dynamic response speed.

3. Low eddy current losses
   Although carbon fiber itself is somewhat conductive, the resin matrix in the composite is typically insulating, and the contact resistance between carbon fiber tows is relatively high, suppressing overall eddy current paths. Compared with solid metal sleeves, carbon fiber sleeves have significantly lower eddy current losses, especially in high-speed, multi-pole motors.

4. Good damping characteristics, beneficial for vibration suppression
   Carbon fiber composites have good damping properties that can absorb some mechanical vibration, reducing rotor vibration and noise.

But carbon fiber sleeves are not without drawbacks:

• Poor thermal conductivity, difficult magnet heat dissipation
  Carbon fiber composites have thermal conductivity far lower than metals, especially in the radial and transverse directions. Heat generated by the magnets is difficult to dissipate through the sleeve, which can lead to excessive temperature rise of the permanent magnets and increased demagnetization risk. Usually, additional internal rotor cooling designs are required, such as oil cooling, axial ventilation, or heat pipes.

• Complex process, difficult consistency control
  Carbon fiber winding requires precise control of tension, winding angle, number of layers, and curing process. If pre-tension is insufficient, the sleeve may loosen at high speeds; if pre-tension is too high, it may crack the magnets. High demands are placed on process stability and quality inspection.

• Brittle failure, lack of ductility
  Carbon fiber composites are brittle materials and may suddenly fracture upon overload, without the plastic deformation warning seen in metals. Therefore, ample safety margins must be reserved in design, and quality must be ensured through non-destructive testing.

• Temperature and humidity limitations
  The resin matrix has limited temperature resistance, typically with long-term operating temperatures not exceeding 150–200°C. At high temperatures, resin softening or aging may occur, affecting the mechanical properties of the sleeve. Additionally, moisture absorption may also degrade performance.

IV. Core High-Speed Performance Comparison

From a high-speed performance perspective, carbon fiber sleeves have clear advantages in ultimate speed, power density, and eddy current losses; metal sleeves are superior in heat dissipation, process cost, and failure safety.

V. How to Choose Based on Application Scenarios?

Scenarios more suitable for carbon fiber sleeves:

• High-speed/ultra-high-speed permanent magnet motors, e.g., air compressors, turbines, flywheel energy storage above 50,000 rpm;

• Aviation electric drives, drone propulsion, racing motors, and other applications demanding extremely high power density;

• Surface-mounted permanent magnet motors where minimizing sleeve eddy current losses is critical;

• Motors equipped with good rotor cooling solutions that can compensate for carbon fiber's poor thermal conductivity.

Scenarios more suitable for metal sleeves:

• Medium-to-low speed industrial motors, conventional automotive traction motors, typically below 20,000 rpm;

• Cost-sensitive, high-volume production products;

• Applications with limited cooling conditions that rely on sleeve thermal conduction;

• Applications where failure warning is a high priority and sudden brittle fracture is unacceptable.

VI. Future Trends

As high-speed motors move toward higher power density, carbon fiber sleeves are being adopted more widely. Meanwhile, hybrid solutions are emerging, such as:

• Carbon fiber + thin metal layer composite sleeves: using the metal layer to improve thermal conductivity or protection while retaining carbon fiber's high specific strength;

• Novel high-thermal-conductivity carbon fiber/resin systems: to enhance composite thermal conductivity;

• Sleeve-less structures: using interior permanent magnet designs or high-strength magnet materials to reduce dependence on sleeves.

In summary, carbon fiber sleeves represent the technological direction of higher speed, lighter weight, and greater power density; while metal sleeves continue to dominate the medium-to-low speed market thanks to their maturity, reliability, and cost advantages. The choice between the two ultimately depends on the motor's actual speed, thermal management conditions, cost constraints, and reliability requirements.
