Detailed Explanation of The Welding Process for Magnetic Coupling Housing

When Magnetic Force "Penetrates the Wall": How Precision Welding Forges the Steel Armor for Magnetic Couplings

In the pump rooms of modern factories, you no longer hear the screech of wearing traditional seals or smell the pungent odor of leaking chemicals—all thanks to the silent work of magnetic couplings. This technology enables "non-contact" power transmission through permanent magnets, fundamentally solving leakage issues in rotating equipment. The key to ensuring the safe operation of this marvel is the seemingly ordinary yet exquisitely crafted magnetic coupling housing. Today, we will delve into how precision welding technology forges an impregnable "steel armor" for the intangible magnetic force.

Core Challenge: Why is Welding So Critical?

The core of a magnetic coupling lies in the separation of its driving and driven ends by a completely enclosed isolation can (i.e., the housing). This housing must simultaneously fulfill three conflicting roles:

1. Guardian of Absolute Sealing: Permanently isolating the internal working medium (which may be toxic, flammable, explosive, or valuable fluid).

2. Channel for Efficient Power Transmission: Must be thin enough to minimize magnetic loss and ensure efficient power transfer.

3. Sturdy and Durable Core: Withstands internal pressure, media corrosion, alternating stresses, and eddy current heating effects over the long term.

Any minor welding defect—such as porosity, cracks, or lack of fusion—can evolve into a leakage point or structural weak spot, leading to total system failure. Therefore, housing welding is far from simple "sheet metal splicing"; it is a top-tier process in the field of precision manufacturing.

Process Core: Detailed Look at Mainstream Welding Technologies

Depending on material, thickness, and performance requirements, three primary high-precision welding processes are employed:

1. Tungsten Inert Gas Welding (TIG)

•  Principle: Welding using an arc generated between a non-consumable tungsten electrode and the workpiece under the protection of an inert gas (argon).

•  Application Scenarios: Main welds for thin-walled housings (typically 0.5-3mm) made of stainless steel (e.g., 304, 316L), Hastelloy, etc.

• Advantages:




• Ultimate Precision: Concentrated arc and precisely controllable heat input enable perfect penetration of ultra-thin materials without burn-through.

• Exceptional Quality: Effective oxidation prevention by inert gas shielding results in pure, smooth, aesthetically formed welds with extremely high internal quality.

• No Spatter: Clean weld area, eliminating the need for secondary cleaning.

•  Challenges: Requires exceptionally high operator skill; improper operation can easily lead to defects like lack of fusion or undercut.

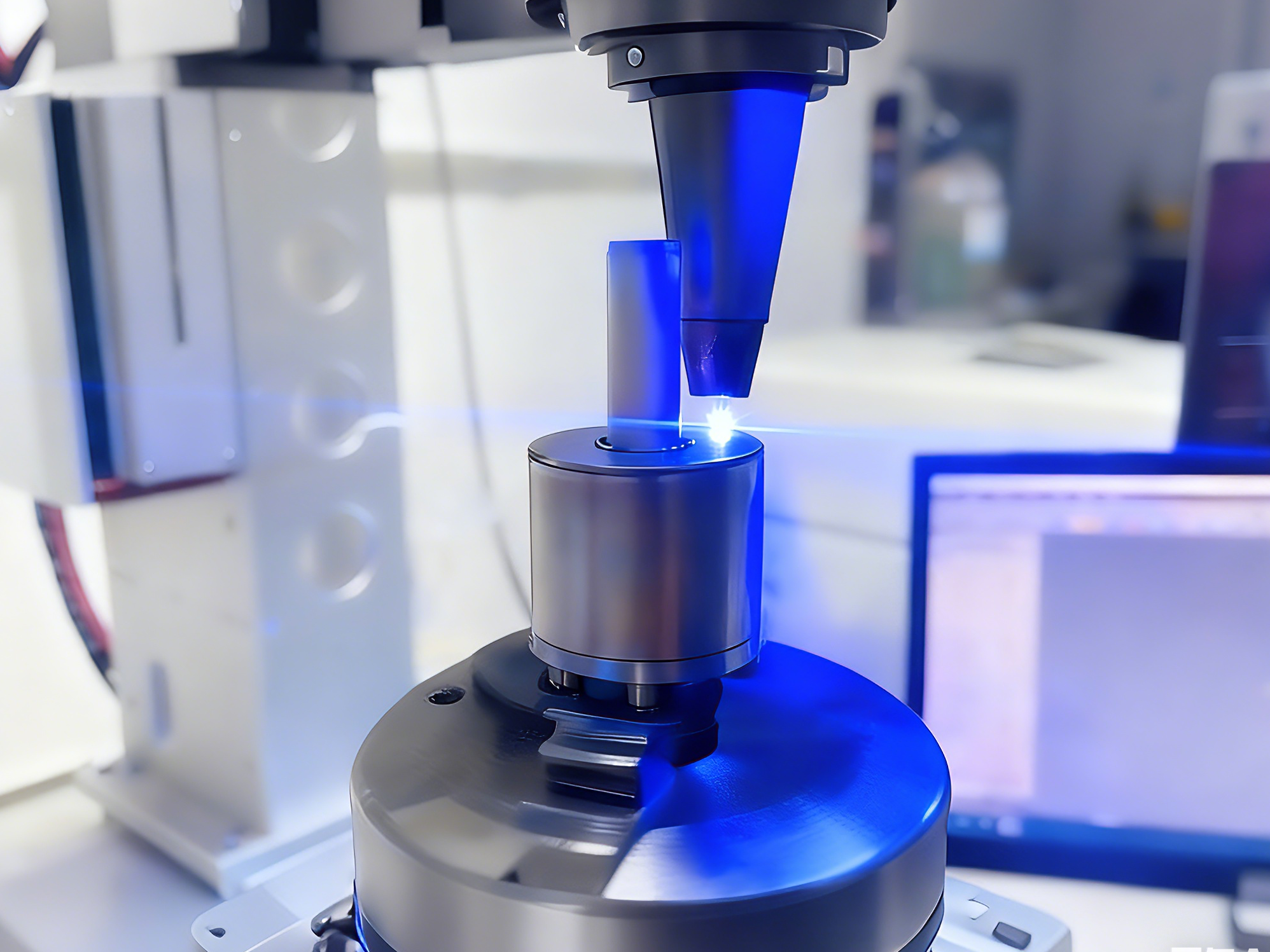

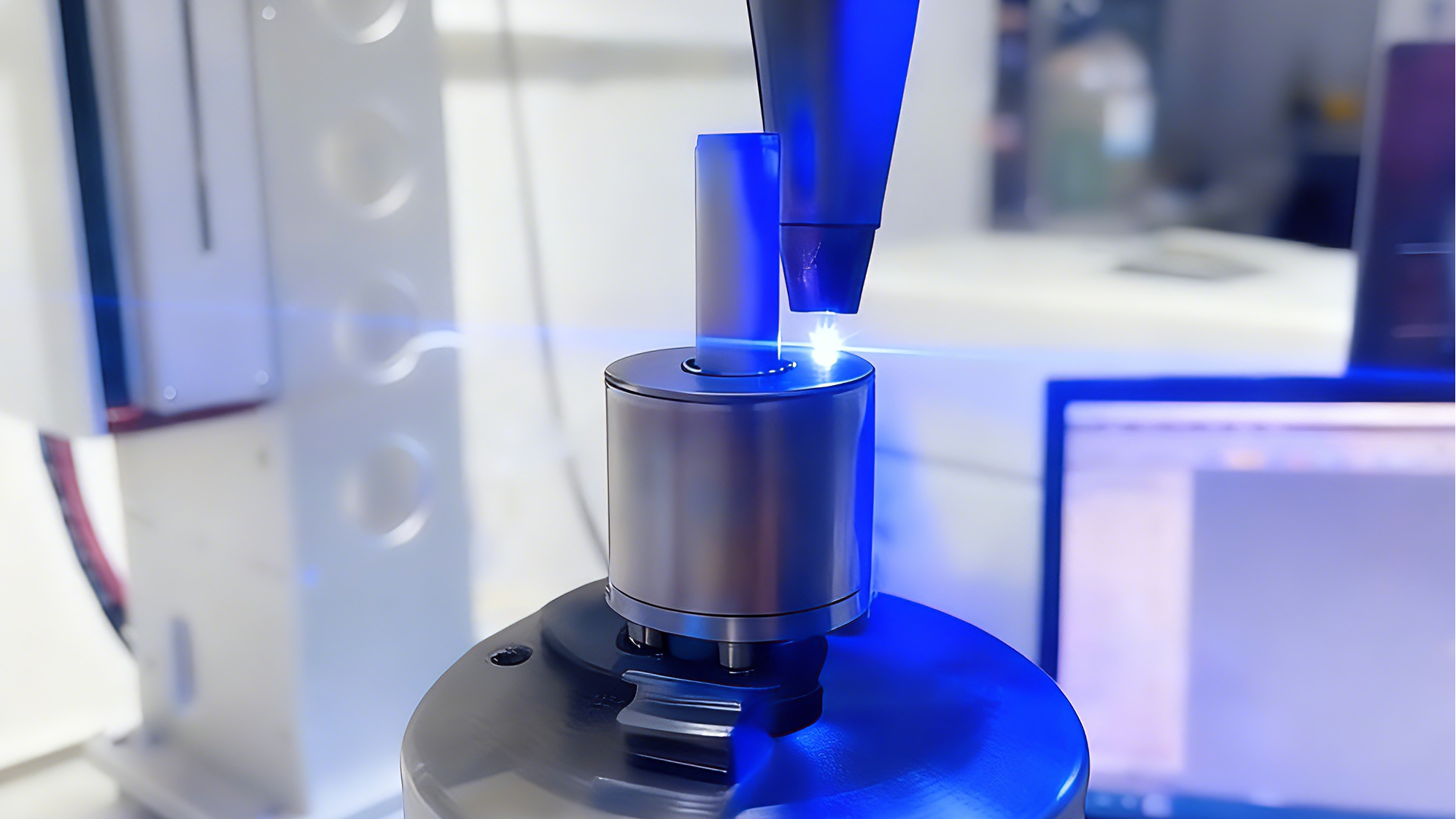

2. Laser Welding

•  Principle: Uses a high-energy-density laser beam as the heat source to achieve instantaneous material fusion.

•  Application Scenarios: Ultra-thin housings (e.g., thickness <1mm) with extremely high demands for precision and efficiency, or for joining dissimilar materials.

•  Advantages:

•  Superlative Precision and Speed: Extremely small laser beam diameter results in a very narrow heat-affected zone, minimal welding distortion, and efficiency far surpassing TIG welding.

•  Excellent Depth-to-Width Ratio: Capable of producing welds with a high depth-to-width ratio, leading to high structural strength.

• Automation-Friendly: Easily integrated with robots for stable, highly repeatable mass production.

•  Challenges: High equipment investment cost; extremely stringent requirements on workpiece fit-up accuracy (gap, mismatch).

3. Electron Beam Welding (EBW)

•  Principle: Welding performed in a high-vacuum environment by bombarding the workpiece with a high-velocity electron stream, converting kinetic energy into heat.

•  Application Scenarios: Special alloy housings for high-end applications with stringent requirements for sealing integrity and structural soundness.

•  Advantages:

•  Ultimate Purity: The vacuum environment completely eliminates gaseous contamination, resulting in unparalleled weld purity.

•  Extreme Depth-to-Width Ratio: Capable of producing very deep and very narrow welds with minimal distortion.

•  Unmatched Integrity: Can achieve nearly 100% defect-free welds, representing the pinnacle of reliability.

•  Challenges: Requires a large vacuum chamber; highest equipment and operational costs; longer production cycles.

Process Panorama: The Complete Chain from Preparation to Inspection

Masterful welding extends far beyond controlling the molten pool; it encompasses a tightly interlinked systematic engineering process:

•  "Zero Defect" Pre-Welding Preparation:

•  Material Selection: Housing base materials must possess excellent corrosion resistance (e.g., high-grade stainless steel) and low magnetic permeability (to reduce eddy current losses).

•  Precision Machining: Joint preparation (bevel) accuracy must reach micrometer levels to ensure perfect fit-up.

•  Extreme Cleaning: Professional solvents are used to thoroughly remove oil, grease, and oxide layers—any residue can induce porosity.

•  Precise Control During Welding:

•  Digital Parameter Control: Precise setting and real-time monitoring of all parameters like current, voltage, travel speed, and gas flow.

•  Environmental Control: Wind protection (crucial for TIG), dust removal, and even control of ambient humidity.

•  Distortion Countermeasures: Use of specialized fixtures and tooling; sometimes pre-setting reverse distortion is necessary to counteract welding thermal stress.

•  "Eagle-Eyed" Post-Weld Inspection and Treatment:

•  Non-Destructive Testing (NDT) Trio:

•  Penetrant Testing (PT): Inspects for minute surface-breaking defects.

•  Radiographic Testing (RT): Like taking an "X-ray" of the weld, revealing internal volumetric defects such as porosity and slag inclusions.

•  Helium Leak Testing: The workpiece is placed in a vacuum chamber or a helium-filled environment to detect extremely minute leak rates (typically required to be below 10⁻⊃1;⁰ mbar·L/s). This is the ultimate test for verifying absolute sealing integrity.

•  Stress Relief: For thick-walled or special material housings, heat treatment is performed to eliminate residual stresses, improving dimensional stability and fatigue resistance.

•  Precision Shaping and Polishing: Ensures smooth flow paths meeting hydrodynamic requirements and aesthetic standards.

Future Outlook: Integration of Intelligence and New Materials

The forefront of magnetic coupling housing welding is advancing towards greater intelligence and integration:

•  Intelligent Welding and Digital Twins: Real-time collection of welding big data via sensors, combined with AI algorithms for adaptive adjustment and process optimization. Building digital twin models of the welding process enables virtual commissioning and predictive quality control.

•  Welding Challenges with New Materials: Developing new welding processes compatible with novel materials featuring low eddy current loss (e.g., high-performance amorphous alloys, composite materials).

•  Application of Hybrid Processes: New technologies like laser-arc hybrid welding show promise for achieving a better balance between efficiency and quality.

The welding of magnetic coupling housings is an art that integrates materials science, thermodynamics, fluid mechanics, and cutting-edge manufacturing technology. Each perfect weld bead represents the most elegant solution to the engineering paradox of "sealing" versus "efficiency". It is precisely this "steel armor," forged by craftsmanship and technology together, that allows the intangible magnetic force to safely and reliably penetrate barriers, propelling modern industry forward towards greater efficiency, environmental friendliness, and safety.
