Carbon Fiber Wet Winding: The "Golden Armor" for High-Speed Rotors
As motor technology advances rapidly toward higher speeds and greater power density, ensuring rotor stability under extreme conditions—tens of thousands or even hundreds of thousands of revolutions per minute—has become a core challenge for engineers. Traditional metal sleeves (such as alloy steel or titanium alloy) are increasingly unable to meet the demands of ultra-high-speed motors due to their high density and eddy current losses caused by electrical conductivity and magnetic permeability.
Enter carbon fiber wet winding, an advanced technology originating from the aerospace industry, now quietly becoming a leading technique in the field of high-speed rotor manufacturing.
What is Carbon Fiber Wet Winding?
Carbon fiber winding is a process in which continuous fibers are impregnated with resin and then wound onto a mandrel according to a pre-designed path, followed by curing and demolding to produce a high-strength composite component.
Depending on the timing of resin impregnation, the process is mainly divided into three types: dry winding, semi-dry winding, and wet winding. Among these, wet winding is the most widely used in industrial applications due to its unique advantages.

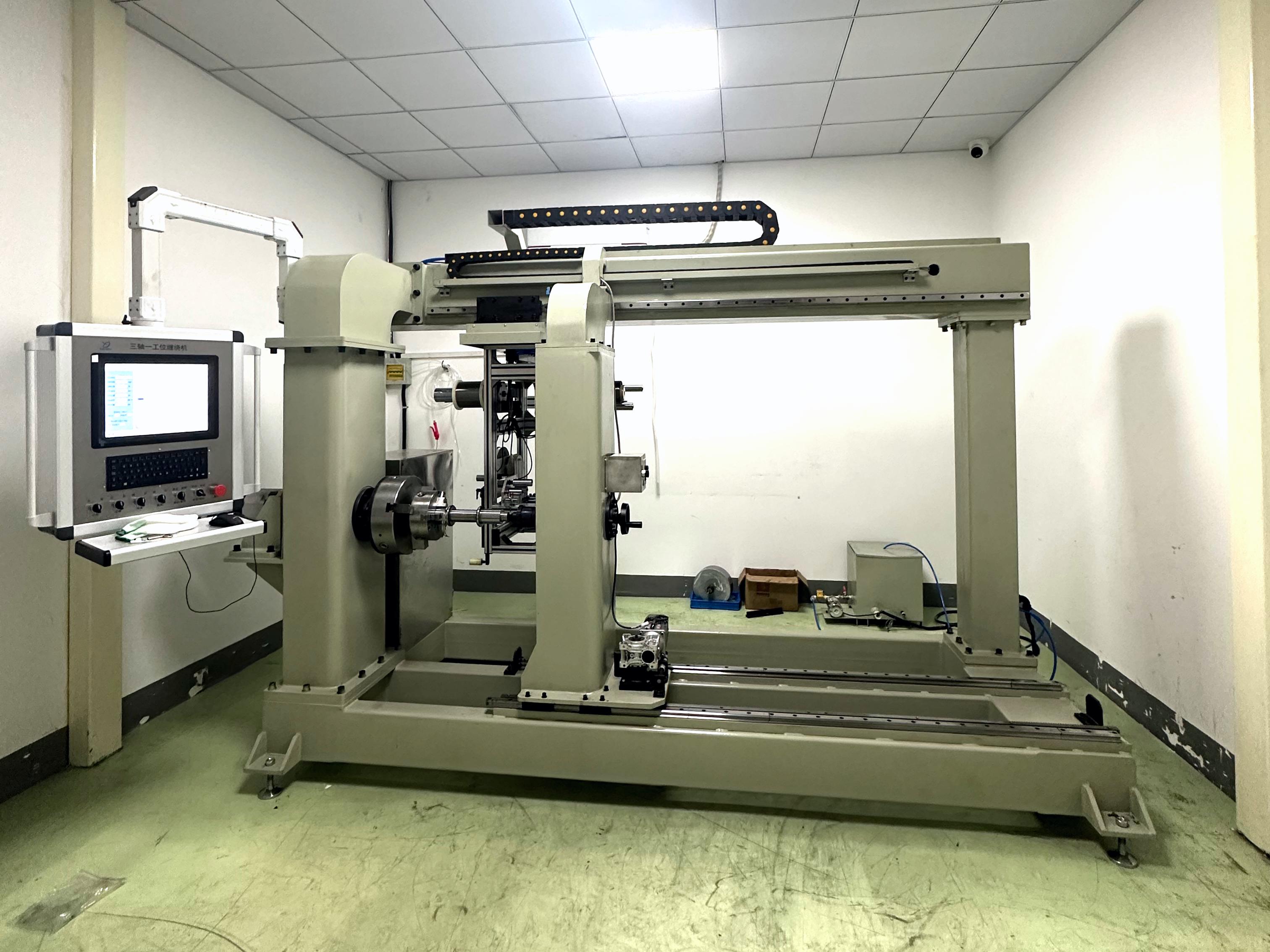

The wet winding process is straightforward: on a winding machine, dry carbon fiber passes through a resin bath to be thoroughly impregnated with liquid resin. Under controlled tension, it is then wound directly onto a rotating mandrel (such as a motor rotor) and finally cured at high temperature to form a dense, rigid composite layer.
Why is Wet Winding So Popular?
Compared to dry winding (which uses prepreg and expensive equipment) and semi-dry winding, the wet winding process offers three key advantages for manufacturing high-speed rotor sleeves:
1. Low Cost and High Adaptability: Wet winding equipment is relatively simple and compatible with a wide range of raw materials, eliminating the need for expensive prepreg production and significantly reducing manufacturing costs.
2. Excellent Airtightness and Integrity: During the winding process, excess resin is forced out under tension, expelling air bubbles and filling voids. This results in a component with superior airtightness, which is critical for rotors that must maintain balance under high centrifugal forces.
3. Reduced Fiber Abrasion: The resin matrix protects the fibers during winding, minimizing mechanical wear and maximizing the retention of the carbon fiber's high-strength properties.
Solving the Critical Challenge of High-Speed Rotors
In permanent magnet synchronous motors, the rotor's permanent magnets are subjected to immense centrifugal forces at high speeds. Relying solely on the tensile strength of the magnet material makes them highly susceptible to failure. While traditional metal sleeves provide restraining force, they generate eddy current losses, leading to significant heat buildup and adding excessive weight.

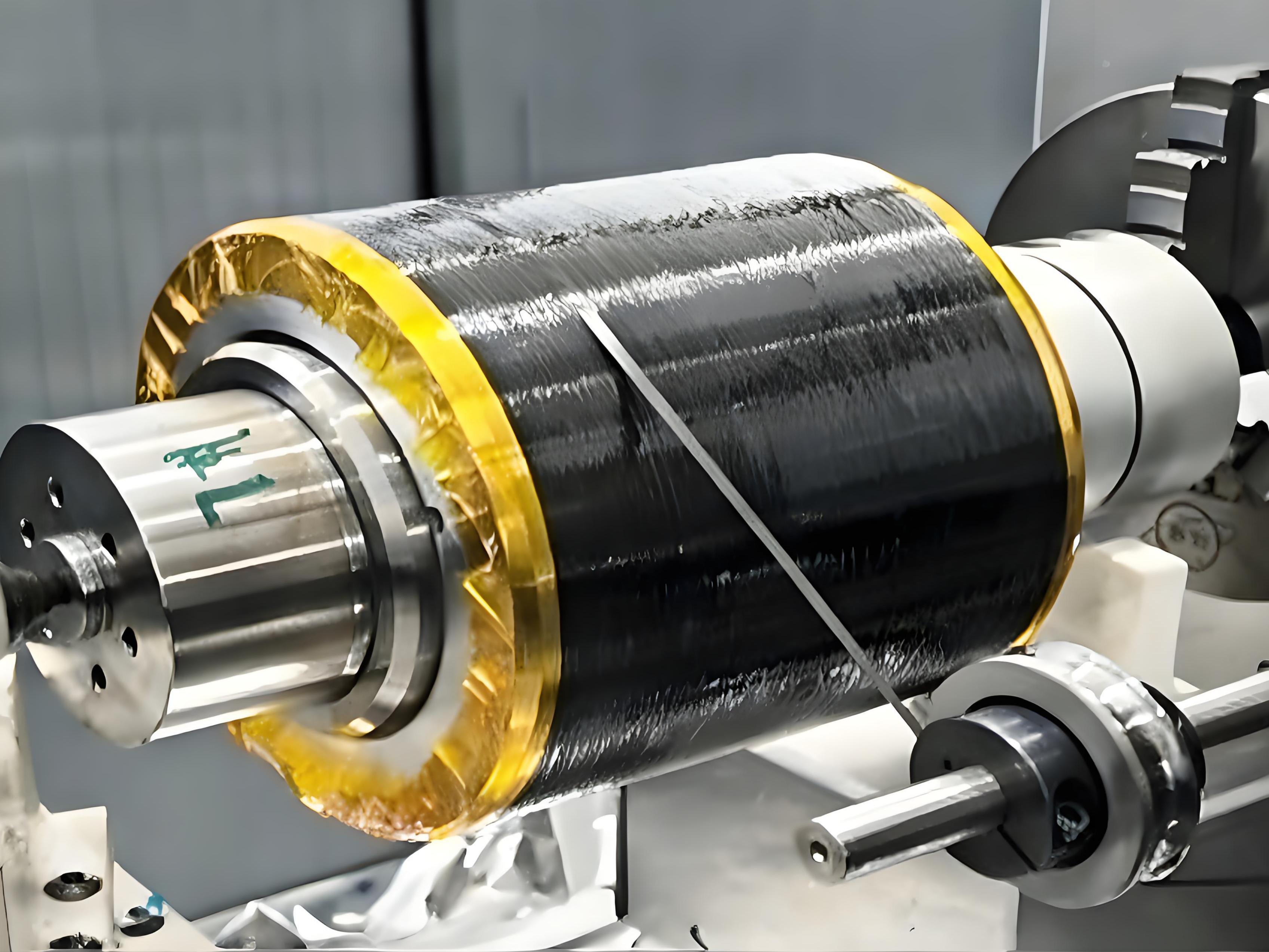

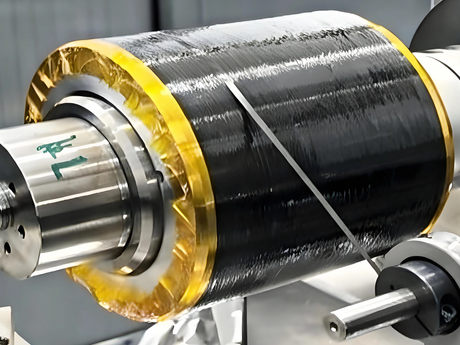

Using carbon fiber wet winding, a thin yet incredibly strong carbon fiber composite layer is wound directly onto the rotor surface or around the magnets, forming a robust "restraining sleeve." The advantages are transformative:
· Ultimate Lightweighting: Carbon fiber has a density roughly one-fifth that of steel, significantly reducing rotor inertia and improving dynamic response.
· Non-Conductive, Non-Magnetic: It completely eliminates eddy current losses, enhancing efficiency and reducing rotor temperature rise.
· "Golden" Performance: Leveraging the exceptional tensile strength of carbon fiber, this layer acts like a "golden armor" around the high-speed rotor, enabling it to withstand extreme linear velocities with ease.
SDM: A technical team specializing in high-speed rotor winding processes
As demand for high-speed motors surges across industries such as new energy vehicles, aerospace, and precision machinery, the market for carbon fiber-wound rotors is expanding rapidly.
SDM leverages deep technical expertise to focus on providing high-performance rotor solutions for high-speed motors. Equipped with advanced wet winding machinery and processes, we offer:
· High-Precision Carbon Fiber-Wound Rotors: We precisely design winding tension and patterns tailored to rotors of varying speeds and dimensions, ensuring optimal fiber volume fraction and maximum restraining force.
· Custom Carbon Fiber Sleeves: For customers with existing rotor cores or magnets, we provide independent, high-strength carbon fiber sleeves (carbon fiber jackets). Using shrink-fit thermal assembly, we deliver complete rotor assemblies, simplifying your manufacturing process.
· Comprehensive Process Control: We rigorously control every step—from resin formulation and tension management to the curing cycle—guaranteeing products with low porosity, high density, and excellent dynamic balance.
Whether for new energy drive motors, aerospace starter/generators, centrifugal compressors, or flywheel energy storage systems, SDM offers reliable, non-metallic sleeve solutions for your high-speed challenges.
Choose SDM. Let your rotors soar with the power of carbon.
