The Three Major Pain Points of EV Resolver Sensors: The Difficult Trade-off Between Accuracy, Calibration, And Cost

I. What Is a Resolver Sensor?

In the drive motor of an electric vehicle, there is an unassuming yet critical component—the rotating transformer, commonly known as a “resolver.” It is often described as the “eyes” and “ears” of the motor control system.

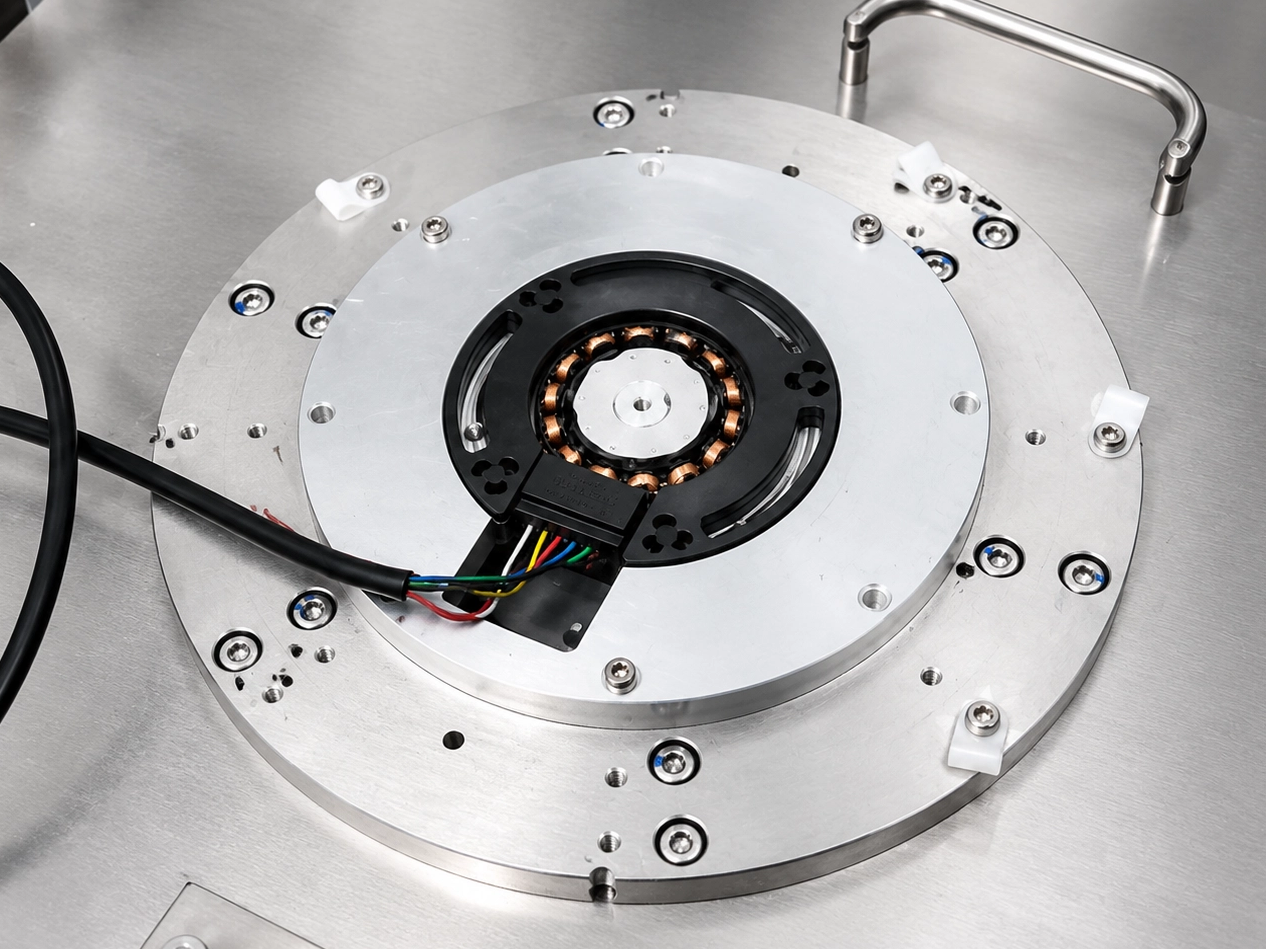

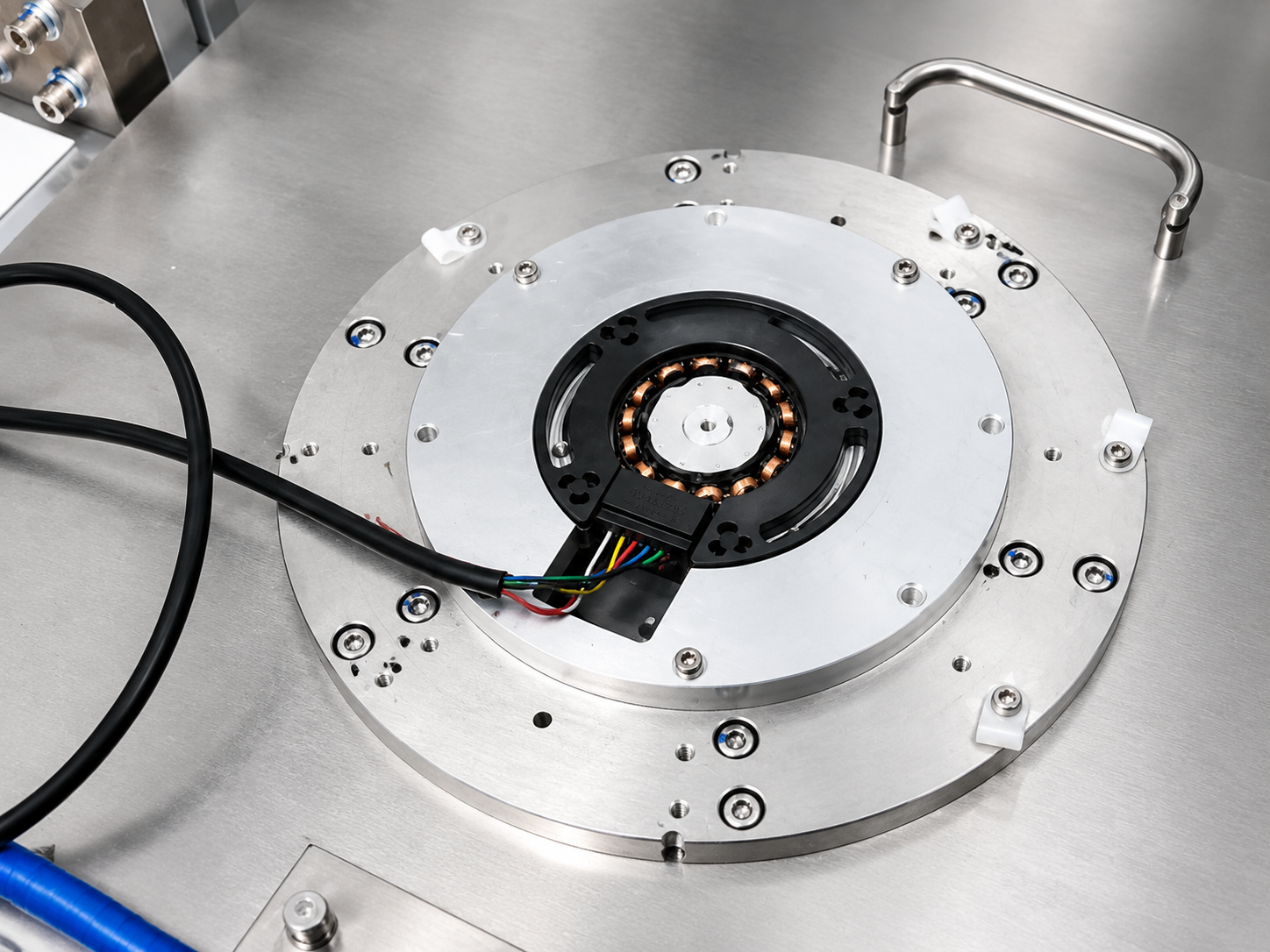

A resolver is an analog angular sensor that operates on the principle of electromagnetic induction. Its structure is relatively simple: it consists of a stator and a rotor. The stator carries an excitation coil and sine/cosine detection coils, while the rotor is coaxially mounted on the motor shaft. When the motor controller applies an AC signal to the excitation coil, the rotation of the rotor alters the magnetic coupling, inducing voltage signals in the sine and cosine coils that vary with the angle. By measuring the amplitudes of these two signals, the absolute rotor position and rotation direction can be accurately calculated.

Today, permanent magnet synchronous motors are widely used in EV traction drives, and their control depends heavily on precise rotor position feedback. In essence, every angular signal output by the resolver directly affects the motor’s torque output, speed regulation, and the vehicle’s overall driving safety and smoothness.

However, resolver sensors face three unavoidable pain points in practical applications—accuracy, calibration, and cost—which form a complex trade-off relationship.

II. Pain Point 1: Accuracy—A Miss Is as Good as a Mile

The accuracy of a resolver directly determines the quality of motor control. If the angular error is too large, it may cause motor jitter, sluggish acceleration, abnormal noise, or even severe issues like uncontrolled acceleration or failure to start. Unfortunately, ensuring resolver accuracy is far from straightforward.

First, error sources are numerous and complex. Resolver accuracy errors stem from three main levels: design errors (such as quadrature error and amplitude error), manufacturing process errors (such as zero-position error), and installation/usage errors (such as eccentricity-induced zero-position error). Among these, installation eccentricity is a common problem—when the centers of the resolver rotor and stator do not align with the motor rotor center, the peak values of the sine/cosine signals become inconsistent between half-cycles, directly compromising measurement accuracy. Moreover, the high-temperature environment inside the motor tends to exacerbate eccentricity issues.

Second, accuracy deteriorates sharply at high speeds. As EV motor speeds continue to climb, the resolver’s limitation at high rotational speeds becomes increasingly apparent. Currently, mainstream motor speeds range from 16,000 to 21,000 rpm, and the rise of high-voltage platforms has pushed maximum speeds beyond 30,000 rpm. The resolver’s excitation signal frequency is typically 10 kHz. At ultra-high speeds, the number of fundamental wave cycles captured drops dramatically—at 20,000 rpm, the available signal is only one-quarter of that at 5,000 rpm. The fitted angle signal then deviates significantly from the true angle. Most current resolvers require an angular accuracy within ±33′ (mechanical angle, 4 pole pairs), while industry demand for high precision has already reached ±22.5′.

Furthermore, electromagnetic interference is a major accuracy killer. The magnetic fields of the high-speed motor itself, along with the switching actions of the IGBTs in the electric control unit, generate electromagnetic noise that interferes with the resolver’s signal transmission path. The resolver’s 10 kHz excitation frequency happens to coincide with the IGBT switching frequency, so the IGBT switching noise can easily affect the original carrier wave, causing distortion in the demodulated signal and further degrading angular accuracy.

III. Pain Point 2: Calibration—Every Motor Is Unique

If accuracy is the resolver’s innate “constitution,” then calibration is the “fine-tuning” after birth. Every resolver must be calibrated after production; otherwise, even the best precision is useless.

Why is calibration mandatory? The resolver measures mechanical angle, but the motor’s field-oriented control requires electrical angle. The resolver’s 0° mechanical angle does not equal the motor magnetic pole’s 0° electrical angle—due to inevitable machining and assembly tolerances, the relative position varies from motor to motor. Without calibration, the controller computes the wrong angle. The core task of calibration is simple: determine the fixed offset between the resolver zero position and the motor rotor magnetic pole zero position, write it into the controller, and achieve accurate zero alignment.

Calibration itself is a challenge. Traditional calibration relies on manual operation—using an oscilloscope to manually zero the resolver, which is time-consuming and often insufficiently precise. As production volumes scale up, automated in-line calibration has become the norm: the motor is fixed on a test bench, and a host computer sends calibration commands to perform zero-search automatically. However, automated calibration also faces difficulties: long calibration times and inconsistent precision. Some patent literature explicitly points out that existing resolver zero-offset calibration methods suffer from “long duration and poor accuracy.” Improving calibration efficiency while ensuring precision is a practical dilemma on the production line.

Calibration accuracy is also constrained by measurement equipment. Static and dynamic angle-measurement calibration of resolvers requires high-precision reference devices, such as rotary tables, circular gratings, and photoelectric autocollimators. These instruments are costly, further increasing the investment in calibration. In recent years, integrated resolver analyzers that combine the functions of several traditional instruments have emerged, reducing equipment costs by 70%. Nevertheless, calibration remains a significant time and money expense in resolver applications.

IV. Pain Point 3: Cost—The Game from 400 Yuan to 100 Yuan

Among the three pain points, cost is the one with the most immediate “business reality.”

The cost structure of a resolver is special. Material costs are dominated by silicon steel sheets. The device is complex to design and difficult to manufacture, involving labor-intensive processes such as winding and soldering, making it hard to reduce costs through simple means. In addition, a resolver requires a dedicated decoder chip (RDC, resolver-to-digital converter) to process signals, which adds considerable expense. Global annual production of automotive-grade resolver decoder chips reaches tens of millions of units, with an average selling price of about US$3.6 per chip.

In the past, this market was long dominated by foreign companies. Before domestic substitution took off, imported resolver sensors cost over 400 yuan per unit, raising vehicle costs and leaving supply chains vulnerable. In recent years, Chinese companies such as Huaxuan Sensing have achieved core technological breakthroughs, slashing sensor prices from over 400 yuan to around 100 yuan—just one-quarter of the former price. Domestic resolvers have already entered the supply chains of major automakers including SAIC, BYD, Li Auto, and XPeng.

Cost reduction continues. Over the past decade, resolver selling prices have fallen by about 10% annually on average. Cost reductions come from two main directions: first, the introduction of industrial automation in production, boosting annual efficiency by 20% and lowering manufacturing costs; second, shifting materials from high-grade silicon steel from Japan’s Nippon Steel to domestically sourced steels from Baosteel and Shougang, using lower-grade substitutes that reduce material costs by 8%-10% per year. In addition, software-based decoding solutions are emerging—using built-in microcontroller modules and software algorithms to decode signals without dedicated decoder chips, dramatically cutting hardware costs. Some schemes have reduced BOM costs from over US$15 to about US$1.5.

V. The Difficult Trade-off Among the Three

Accuracy, calibration, and cost are not independent; they interact and constrain one another—improving one often comes at the expense of another.

Pursuing higher accuracy typically requires more precise manufacturing processes, better materials, and more complex structural designs—all of which point to higher costs. At the same time, a high-accuracy resolver demands stricter installation precision, which increases the difficulty and cost of calibration.

Pursuing lower costs may force “downgrading” materials (e.g., replacing high-grade with lower-grade silicon steel) or simplifying processes—which inevitably compromises accuracy. On the production line, improving calibration efficiency (to reduce cost) may sacrifice some calibration precision, while guaranteeing calibration precision requires more time and equipment—again driving up cost.

This forms a kind of “impossible triangle”: accuracy, efficiency (calibration), and cost are hard to achieve simultaneously.

That is why the industry has explored various solutions. For example, a “low-accuracy dual-resolver redundant coupling” scheme uses two low-cost resolvers together to achieve high-precision measurement. Another approach—dual-sampling differential position decoding—improves position decoding accuracy by more than 80% without increasing hardware cost. Also, resolver zero-angle self-learning technology allows the controller to automatically detect and correct zero offsets. These attempts are all trying to break the rigid constraints of the triangle.

VI. Outlook: New Paths to Break the Triangle

In the longer term, the “accuracy-calibration-cost” triangle of resolver sensors is gradually being pried open.

In terms of accuracy, new magnetoresistive resolver designs are continuously being optimized, with some products already successfully addressing the low-precision issue of position sensors in high-speed motors, significantly enhancing maximum motor speed and control accuracy. In calibration, neural-network-based adaptive prediction compensation methods and automated calibration systems are moving the process from “manual experience” toward “data-driven” approaches. In cost, the wave of domestic substitution is far from over—material localization, process automation, and software-based decoding are advancing in parallel, leaving further room for cost reduction.

The story of resolver sensors is essentially a microcosm of the new energy vehicle industry’s journey from “functional” to “excellent” to “affordable.” The trade-off between accuracy, calibration, and cost has no perfect answer—only ever-closer approximations through relentless engineering optimization. And that, precisely, is the true charm of technological progress.
