Behind the lightning-fast acceleration of new energy vehicles, within the precision and silent drills in dentists' hands, and inside the high-speed operation of precision machine tools in factories, there lies an unsung technological hero—the high-speed motor rotor. This rotating component, with a diameter of just over a dozen centimeters, is quietly transforming our world at speeds of tens of thousands of revolutions per minute.
How High-Speed Rotors Work: When Electromagnetics Meets Mechanics
High-speed motors typically refer to systems with rotational speeds exceeding 10,000 revolutions per minute (rpm), with some cutting-edge applications reaching over 100,000 rpm. This astonishing speed offers two major advantages: high power density (greater power in the same volume) and fast dynamic response, but it also introduces unique physical challenges.
Electromagnetic action is the foundation of rotor operation. When current flows through the stator windings, it generates a rotating magnetic field. In permanent magnet synchronous motors, the magnetic field of the rotor's permanent magnets synchronizes with this rotating field, while in induction motors, the rotor generates its own magnetic field through electromagnetic induction. As speed increases, the alternating frequency of the magnetic field rises sharply, which is why high-speed motors often use 2-pole or 4-pole designs to reduce operating frequency.
Mechanical dynamics are equally critical. According to the physics formula F=mω2rF=mω2r, centrifugal force is proportional to the square of the rotational speed. This means that at 20,000 rpm, the centrifugal force on the rotor's surface can reach tens of thousands of times Earth's gravity—equivalent to applying a 50-ton pull on every square centimeter! Additionally, every rotor has its critical speed (the speed corresponding to its resonant frequency), and the operating speed must avoid this dangerous zone.
Material Revolution: The Grand Entrance of Carbon Fiber
Under extreme centrifugal forces, traditional metal materials fall short. Enter carbon fiber composites, a miraculous material borrowed from aerospace.

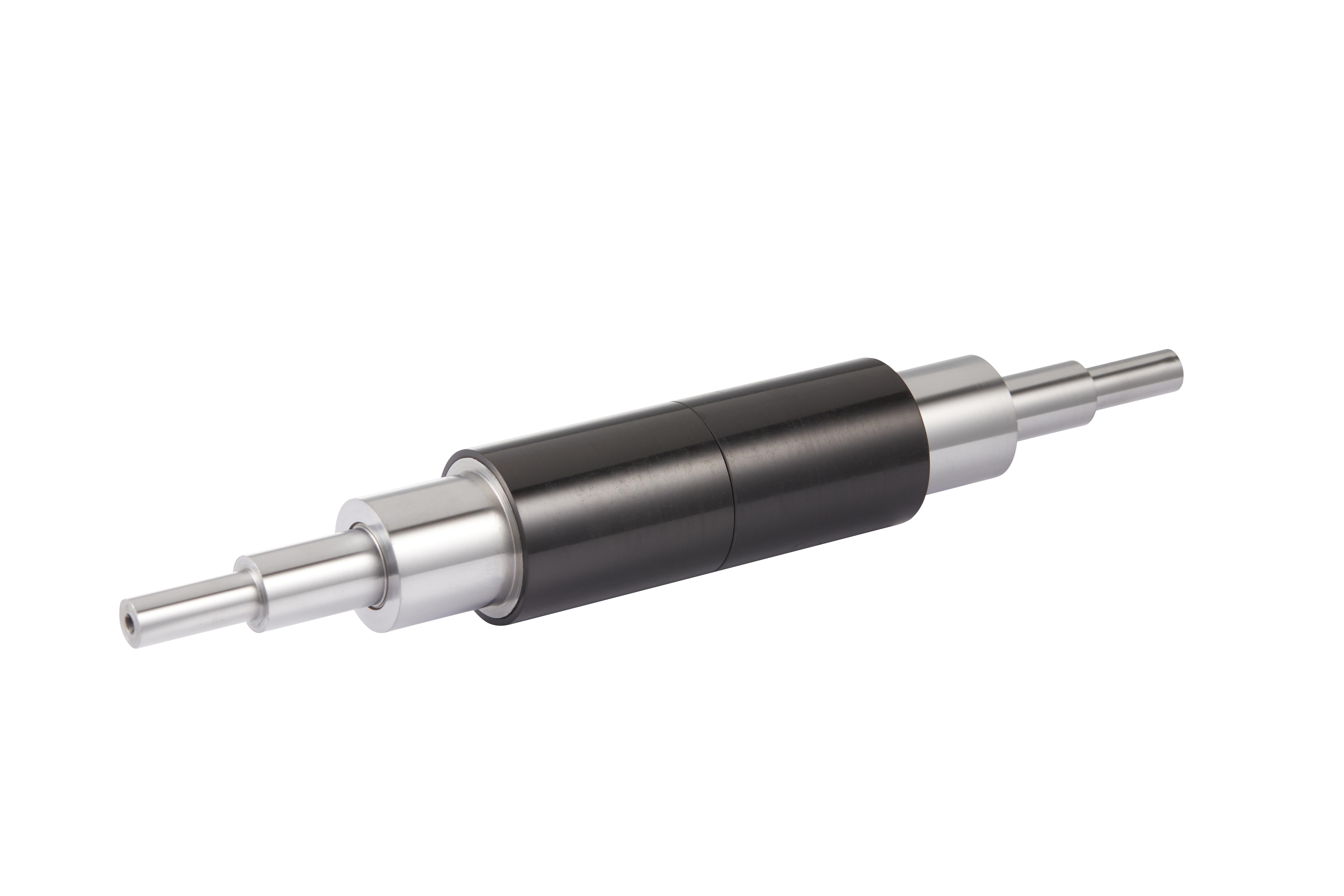

Carbon fiber boasts a specific strength (strength-to-density ratio) over five times that of high-strength steel, while its density is only a quarter of steel's. These properties make it the ideal "armor" for high-speed rotors. Tesla's Model S Plaid drive motor was the first to mass-produce this technology, achieving speeds exceeding 20,000 rpm. The principle involves precisely wrapping high-tension carbon fiber strands around the surface of permanent magnets and curing them with special resin to form a protective sleeve. This not only prevents the permanent magnets from scattering but also applies radial preload (about 200-300 MPa) to protect the brittle permanent magnet material.
Even better, carbon fiber has an extremely low thermal expansion coefficient (about 0.5×10-6/℃), allowing for smaller air gaps (reduced by 30-50%) and significantly improving magnetic flux utilization. Tests show that carbon fiber sleeves can reduce rotor eddy current losses by over 60% and improve system efficiency by 0.2-0.5 percentage points.
Structural Innovations: Diverse Solutions
Different applications have given rise to a variety of rotor designs:
· Metal-Sleeved Permanent Magnet Rotors: Use high-strength non-magnetic alloys (e.g., titanium) to encase permanent magnets. This mature technology suffers from high eddy current losses.
· Interior Permanent Magnet Rotors: Embed magnets inside the iron core for better safety but are prone to saturation at high speeds.
· Solid Asynchronous Rotors: Operate without windings, relying on eddy currents, making them suitable for ultra-high speeds above 100,000 rpm but with lower efficiency.
Magnetic Levitation Rotors represent the cutting edge. By using electromagnetic forces to suspend the rotor, mechanical friction is eliminated entirely. A certain magnetic levitation molecular pump achieves speeds of 120,000 rpm with vibration amplitudes under 1 micron, making it a critical device in semiconductor manufacturing. However, its complex control system also leads to high costs.
Interference Fit Design is a subtle yet crucial manufacturing detail. For a 20,000 rpm motor, the interference between the rotor core and the shaft must be precise to within 32 microns (about one-third the diameter of a human hair), with shaft diameter tolerances controlled within 0.030 mm—a testament to the adage, "A miss is as good as a mile."
Applications: From Daily Life to Industry
High-speed rotor technology has permeated numerous fields:
· In new energy vehicles, it serves as the core of propulsion (e.g., the Zeekr 001 FR motor at 20,620 rpm) and is used in fuel cell air compressors (100,000+ rpm) and electric turbochargers.
· In household appliances, high-end vacuum cleaners employ 100,000 rpm brushless motors with noise levels below 80 decibels.
· In medical devices, dental handpieces reach speeds of 400,000 rpm with diameters of just 3-5 mm.
The industrial sector sees even broader applications:
· High-speed spindles (30,000-100,000 rpm) in CNC machines enable precision machining.
· Centrifugal compressors with direct-drive motors (20,000-50,000 rpm) improve efficiency by 5-10%.
· In energy, flywheel energy storage systems (30,000-60,000 rpm) achieve charge/discharge efficiencies over 95%, emerging as a new option for grid frequency regulation.
Future Outlook: Faster, Stronger, Smarter
Cutting-edge research is pushing the limits:
· Carbon nanotube-reinforced composites could increase sleeve strength by 50%.
· High-temperature superconducting rotors may achieve magnetic fields of 2-3 Tesla (compared to ~1 T in traditional designs).
· 3D-printed, topologically optimized rotors have already achieved 20% weight reduction with 30% strength improvement.
Digital technologies are unlocking new possibilities:
· Digital twins simulate rotor performance under various conditions.
· Embedded sensors enable real-time health monitoring.
· AI algorithms optimize designs, with one case improving efficiency by 1.2 percentage points.
Sustainability is also a focus:
· Low-rare-earth permanent magnets reduce resource dependency.
· Easy-disassembly designs increase permanent magnet recovery rates from 60% to 95%.
· Bio-based composites lower carbon footprints.
From traditional metals to carbon fiber, from mechanical bearings to magnetic levitation, the evolution of high-speed motor rotors is a condensed history of industrial innovation. This technology continues to advance rapidly, with potential future applications in distributed energy, space exploration, and beyond. Just as a rotor maintains balance at high speeds, technological progress must find the perfect equilibrium between innovation and reliability, performance and cost. Mastering this balancing act remains the ultimate goal for engineers.
