Ever wondered how magnets hold heavy objects so firmly? Magnetic assemblies make this possible by enhancing magnet strength.Magnetic assemblies combine magnets with steel housings to boost performance and durability. They are vital in many industries today.In this post, you’ll learn what magnetic assemblies are, why they matter, and how they improve magnetic power.
How Magnetic Assemblies Work: Core Principles
Magnetic assemblies are engineered to optimize magnetic performance by carefully controlling the magnetic field and protecting the magnet itself. Understanding the core principles behind how magnetic assemblies work is essential for selecting or designing the right assembly for your application.
Magnetic Field Concentration and Direction
At the heart of a magnetic assembly is the magnet, which generates a magnetic field. However, a bare magnet’s field spreads out in all directions, reducing the effective holding force. Magnetic assemblies use steel housings or back plates to concentrate and direct the magnetic field toward the working face. This focusing effect increases the pull force where it’s needed most, making the assembly much stronger than a bare magnet alone.
Role of Steel Housings and Back Plates
Steel housings serve multiple functions. They act as a magnetic circuit, guiding the magnetic flux efficiently. By providing a low-resistance path for magnetic lines, they reduce flux leakage and enhance magnetic strength. Additionally, housings protect the magnet from physical damage, such as chipping or cracking, which can degrade performance. Back plates also shield the magnet from demagnetizing fields, helping maintain its magnetic properties over time.
Function of Pole Pieces in Magnetic Flow Control
Pole pieces are specially designed steel components placed at the magnetic assembly’s working face. They shape and control the magnetic flux distribution, ensuring even and targeted magnetic force. By adjusting pole piece geometry, manufacturers can tailor the magnetic assembly design to specific applications, optimizing holding power and minimizing uneven stress on the surfaces involved.
Protection Against Demagnetization and Physical Damage
Magnetic assemblies safeguard magnets from external factors that could weaken them. Steel housings and coatings protect against mechanical shocks, wear, and corrosion. Moreover, the magnetic assembly mechanism limits exposure to opposing magnetic fields that might cause demagnetization. This protection extends the lifespan of the magnet and ensures consistent performance in demanding environments.
Comparison of Magnetic Assemblies vs. Bare Magnets
Compared to bare magnets, magnetic assemblies offer:
Higher holding force due to magnetic field concentration
Improved durability through protective housings
Simplified mounting with built-in installation features
Reduced flux leakage enhancing efficiency
These advantages make magnetic assemblies ideal for industrial, automotive, and consumer applications where reliability and strength matter.
Factors Influencing Magnetic Strength and Efficiency
Several factors affect magnetic assembly performance, including:
Magnet material and grade (e.g., neodymium vs. ferrite)
Housing material and thickness
Pole piece design and placement
Air gap between magnet and target surface
Operating temperature and environmental conditions
Designers must balance these factors during the magnetic assembly process to achieve optimal results.
Design Considerations for Optimal Magnetic Performance
When designing or selecting a magnetic assembly, consider:
Magnetic assembly components compatibility
Desired magnetic assembly function and application requirements
Size and shape constraints for proper magnetic assembly setup
Environmental exposure influencing material choice and coatings
Safety margins to prevent failure under load
Custom magnetic assemblies can be tailored to meet specific needs, ensuring maximum efficiency and reliability.
Types of Magnetic Assemblies and Their Functions
Magnetic assemblies come in various types, each tailored to specific applications and functions. Understanding these types helps you choose the right magnetic assembly for your project or operational needs. Here’s a closer look at the most common magnetic assembly types and their typical uses.
Pot Magnets: Structure and Applications
Pot magnets are among the most popular magnetic assemblies. They consist of a strong magnet encased within a steel cup or housing. This design focuses the magnetic field on one face, increasing holding power while protecting the magnet from damage.Key features:
Steel housing concentrates magnetic flux
Durable and resistant to impact
Often equipped with threaded holes for easy mounting
Applications:Pot magnets are widely used in fixtures, jigs, and tooling setups where a strong, localized magnetic force is needed. They also serve in industrial lifting and holding tasks, providing reliable grip on metal surfaces.
Magnetic Bases and Holders for Tool Positioning
Magnetic bases are adjustable holders that securely position tools, gauges, or instruments. They typically feature a strong magnetic assembly combined with a swivel or locking mechanism.Benefits include:
Quick and precise tool positioning
Stable hold even on uneven or angled surfaces
Easy repositioning without tools
These magnetic assemblies excel in manufacturing environments, especially in machining and quality control, where precise tool placement is critical.
Magnetic Hooks and Clamps for Secure Hanging
Magnetic hooks and clamps integrate magnetic assemblies into convenient shapes for hanging or clamping objects. They provide a simple and reusable solution for organizing spaces or securing items without drilling or adhesives.Common uses:
Hanging tools or cables in workshops
Clamping materials during assembly or repairs
Temporary mounting of signs or labels
Their versatility makes them popular in retail, warehouse, and home settings.
Magnetic Filters and Separators in Industry
Magnetic filters and separators use specialized magnetic assemblies to remove ferrous contaminants from liquids or bulk materials. These assemblies often incorporate strong magnets arranged to maximize exposure to the material flow.Applications include:
Food and beverage processing to ensure product purity
Mining and mineral processing to separate metals
Recycling operations to recover valuable metals
Custom magnetic assembly design is crucial here to optimize magnetic field strength and flow dynamics.

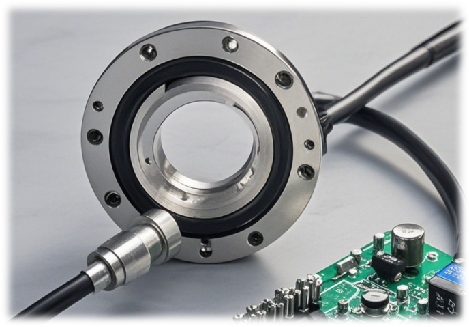

Custom Magnetic Assemblies for Specialized Needs
Many industries require custom magnetic assemblies tailored to unique shapes, sizes, or magnetic strengths. Custom assemblies combine various magnetic assembly components, housings, and coatings to meet specific environmental or functional demands.Examples of custom solutions:
Rotor magnet assemblies for electric motors
Magnetic couplings for sealed systems
Specialized magnetic sensors or actuators
Working with a reputable magnetic assembly manufacturer ensures your custom assembly meets performance and durability standards.
Materials Used in Magnetic Assemblies
Choosing the right materials is crucial in the magnetic assembly design process. The combination of magnet types and housing materials directly impacts the magnetic assembly’s strength, durability, and suitability for different environments. Let’s explore the common materials used in magnetic assemblies and their characteristics.
Neodymium (NdFeB): Strengths and Limitations
Neodymium magnets are the most powerful permanent magnets available today. Their exceptional magnetic strength allows for compact magnetic assemblies that deliver high pull forces. This makes them ideal for applications requiring strong magnetic assembly function in limited space, such as rotor magnet assemblies in electric motors.However, neodymium magnets have some limitations. They are prone to corrosion and mechanical damage if left unprotected. That’s why magnetic assembly manufacturers often encase them in steel housings and apply protective coatings like nickel or epoxy. Additionally, neodymium magnets have a relatively low maximum operating temperature, typically around 80–150°C, which should be considered during the magnetic assembly setup.
Ferrite (Ceramic) Magnets: Cost and Corrosion Resistance
Ferrite magnets, also known as ceramic magnets, offer a cost-effective alternative to rare-earth magnets. While their magnetic strength is lower than neodymium, they provide good corrosion resistance without additional coatings. This makes ferrite magnets well-suited for magnetic assembly applications where moderate strength and environmental resilience are required.Ferrite magnets are often used in magnetic bases, hooks, and clamps, where durability and affordability are key. They can operate at higher temperatures than neodymium magnets, typically up to 250°C, expanding their usability in various industrial environments.
Alnico Magnets for High Temperature Applications
Alnico magnets are known for their excellent temperature stability and can operate at temperatures up to 540°C. Although their magnetic strength is lower compared to neodymium and samarium cobalt, alnico magnets are preferred in applications where high temperature resistance is critical.These magnets are commonly found in specialized magnetic assemblies used in aerospace, automotive sensors, and certain industrial equipment. Their resistance to temperature-induced demagnetization makes them a reliable choice for harsh environments.
Samarium Cobalt (SmCo) for Harsh Environments
Samarium cobalt magnets combine high magnetic strength with outstanding resistance to heat and corrosion. They maintain magnetic performance at temperatures up to 350°C and are less prone to oxidation than neodymium magnets.Magnetic assemblies using SmCo magnets are ideal for demanding applications such as military equipment, aerospace, and high-performance motors. The material’s robustness ensures longevity and stable magnetic assembly function even under harsh conditions.
Common Housing Materials and Protective Coatings
The housing material plays a vital role in the magnetic assembly process by shaping the magnetic field and protecting the magnet. Steel is the most common housing material because of its magnetic conductivity and mechanical strength. Stainless steel is used when corrosion resistance is necessary.Protective coatings like nickel, zinc, epoxy, or specialized paints shield the magnets and housings from moisture, abrasion, and chemical exposure. These coatings extend the lifespan of the magnetic assembly and reduce maintenance needs.
| Material Type | Key Features | Typical Applications |
| Neodymium (NdFeB) | Very strong, compact, corrosion-prone | High-strength assemblies, rotor magnets |
| Ferrite (Ceramic) | Cost-effective, corrosion-resistant | Bases, hooks, clamps |
| Alnico | High temperature stability | Sensors, aerospace, automotive |
| Samarium Cobalt (SmCo) | Heat and corrosion resistant | Harsh environments, military, aerospace |
| Steel Housing | Magnetic flux conductor, protective | Most magnetic assemblies |
| Stainless Steel | Corrosion resistant housing | Outdoor or corrosive environments |
Benefits of Using Magnetic Assemblies
Magnetic assemblies offer a range of advantages that make them superior to using single, bare magnets in many applications. Whether you’re sourcing from a magnetic assembly manufacturer or designing custom magnetic assemblies, understanding these benefits helps ensure you choose the right solution.
Enhanced Holding Power Compared to Single Magnets
One of the primary benefits of magnetic assemblies is their significantly increased holding force. By incorporating steel housings and carefully designed pole pieces, magnetic assemblies concentrate the magnetic field toward the working surface. This focused magnetic flux means assemblies can deliver several times the pull force of an equivalent bare magnet. For example, a rotor magnet assembly in an electric motor relies on this enhanced strength to maintain efficiency and reliability.
Simplified and Secure Installation Methods
Magnetic assemblies often come with built-in features such as threaded holes, mounting brackets, or adhesive backing. These design elements simplify the magnetic assembly setup by enabling quick, secure attachment to surfaces without additional hardware. This ease of installation reduces labor costs and the risk of improper mounting, which can compromise magnetic assembly function.
Extended Lifespan Through Protective Design
The protective steel housings and coatings used in magnetic assemblies shield the magnets from physical damage, corrosion, and demagnetization. This protection is crucial in harsh industrial environments where magnets face mechanical shocks, moisture, or chemical exposure. As a result, magnetic assemblies maintain their strength and reliability longer than bare magnets, reducing downtime and replacement frequency.
Cost Efficiency and Reduced Maintenance
Though magnetic assemblies might have a higher upfront cost than single magnets, their durability and performance translate into long-term cost savings. Fewer replacements and less maintenance are needed, making them more economical over the lifecycle of the product or application. Additionally, their reliable holding power reduces the need for additional securing mechanisms, further cutting costs.
Improved Safety and Reliability in Applications
Magnetic assemblies provide consistent and predictable magnetic forces, improving safety in lifting, holding, or fastening tasks. Their robust construction minimizes the risk of sudden failures caused by magnet damage or improper installation. This reliability is especially important in critical applications such as automotive panel fastening or industrial lifting solutions.
Common Applications of Magnetic Assemblies
Magnetic assemblies are incredibly versatile and widely used across many industries due to their strong magnetic assembly function and adaptable design. Their ability to securely hold, position, or separate metal components makes them indispensable in both industrial and everyday settings. Below, we explore some of the most common magnetic assembly applications where their strength and reliability shine.
Industrial Lifting and Holding Solutions
In manufacturing and fabrication, magnetic assemblies provide a safe and efficient way to lift and hold heavy metal parts. For example, magnetic lifting devices use custom magnetic assemblies designed to generate strong, focused pull forces. These assemblies securely grip steel plates, pipes, or tools during welding, cutting, or transport. The magnetic assembly mechanism eliminates the need for clamps or slings, reducing setup time and improving worker safety.
Precise Tool Positioning in Manufacturing
Magnetic bases and holders are essential in machining and assembly lines. They hold gauges, indicators, or fixtures firmly in place while allowing quick adjustments. The magnetic assembly design ensures stable contact with metal surfaces, preventing unwanted movement during critical operations. This precision improves product quality and speeds up manufacturing processes. Custom magnetic assemblies can be tailored to fit specific tools or machines for optimal performance.
Retail Displays and Signage Stability
In retail environments, magnetic assemblies offer an easy way to mount signs, shelves, or displays. Magnetic hooks and clamps securely hang items without damaging walls or fixtures. Because magnetic assemblies provide strong yet removable attachment, store layouts can be changed quickly to accommodate promotions or seasonal displays. This flexibility enhances the shopping experience and reduces labor costs.
Automotive and Electronics Panel Fastening
Magnetic assemblies are commonly used to fasten removable panels or covers in automotive and electronics applications. For instance, rotor magnet assemblies inside electric motors rely on precise magnetic assembly components to maintain efficiency. Magnetic fastening solutions provide clean, tool-free access for maintenance or upgrades. They also reduce wear and tear compared to mechanical fasteners, extending product lifespan.
Everyday Uses in Home and Office Settings
Magnetic assemblies are found in many household and office products. From magnetic hooks that organize tools and cables to magnetic closures on cabinets and whiteboards, these assemblies offer practical convenience. Their simple magnetic assembly setup requires no drilling or adhesives, making them easy to install and reposition as needed.
Selecting the Right Magnetic Assembly for Your Needs
Choosing the perfect magnetic assembly is crucial to ensure your application performs reliably and safely. Whether you’re working with a magnetic assembly manufacturer or designing custom magnetic assemblies, several key factors must guide your selection process.
Determining Required Pull Force and Safety Margins
First, identify the pull force your application demands. This is the amount of force needed to hold, lift, or secure your load without slipping. It’s best to calculate the maximum expected load and then add a safety margin—typically 25% to 50% more—to accommodate unforeseen stresses or dynamic forces. This approach prevents premature failure and ensures consistent magnetic assembly function.
Choosing the Appropriate Size and Shape
The size and shape of the magnetic assembly must fit your available space and mounting options. For example, a compact rotor magnet assembly requires a precise shape to fit within a motor housing. Similarly, pot magnets or magnetic bases should match the surface area they’ll contact to maximize holding power. Keep in mind that larger assemblies generally provide stronger magnetic forces but may not be practical for tight setups.
Assessing Environmental Conditions and Material Compatibility
Environmental factors greatly impact magnetic assembly durability and performance. Consider temperature ranges, humidity, exposure to chemicals, or corrosive substances. For high-temperature settings, samarium cobalt or alnico magnets are preferable. In moist or corrosive environments, stainless steel housings and protective coatings extend lifespan. Matching magnet and housing materials to your environment ensures your assembly maintains strength and resists damage.
Understanding Load Calculations for Reliable Performance
Accurate load calculations are vital. Beyond static loads, evaluate dynamic forces such as vibrations, shocks, or impacts that your magnetic assembly might face. These can reduce effective holding power or cause mechanical stress. Incorporate these factors into your design or selection process. Consulting with a magnetic assembly manufacturer can help tailor the magnetic assembly components and design to your specific load requirements.
Installation and Maintenance Tips for Magnetic Assemblies
Proper installation and maintenance are essential to ensure your magnetic assemblies deliver optimal performance and long service life. Whether you’re working with standard or custom magnetic assemblies, following best practices during setup and upkeep helps maintain their magnetic assembly function and prevents premature failure.
Preparing Surfaces for Maximum Contact and Strength
Start by cleaning and preparing the mounting surfaces. Remove dirt, grease, rust, or paint to ensure the magnet contacts the metal surface fully and evenly. A flat, smooth surface maximizes the magnetic flux transfer and holding force. Any gaps or debris can significantly reduce pull force and cause uneven stress on the magnetic assembly components.For example, when installing a rotor magnet assembly or pot magnet, sanding or polishing the contact area may be necessary. Using a degreaser or solvent can improve adhesion if the assembly uses adhesive backing. Always follow the magnetic assembly manufacturer’s surface preparation recommendations.
Proper Alignment to Avoid Uneven Stress
Align the magnetic assembly carefully during installation. Misalignment can cause uneven magnetic flux distribution and mechanical stress, which may damage the magnet or housing over time. For assemblies with multiple magnets or pole pieces, proper orientation is critical to achieve the intended magnetic assembly design and function.Use alignment tools or jigs if available, especially for complex setups like custom magnetic assemblies in motors or sensors. Ensuring even contact across the magnetic face prevents warping or cracking and maintains consistent magnetic strength.
Protecting Assemblies from Heat and Mechanical Shock
Magnetic assemblies are sensitive to excessive heat and mechanical impacts. High temperatures can cause irreversible demagnetization, especially for neodymium magnets. Avoid installing assemblies near heat sources or in environments exceeding the magnet’s maximum operating temperature.Mechanical shocks or vibrations can chip or crack magnets and damage housings. Use vibration dampening mounts or protective enclosures if the application involves heavy machinery or dynamic loads. Proper protection extends the lifespan and preserves magnetic assembly efficiency.
Regular Inspection and Maintenance Practices
Routine inspection is key to spotting wear, corrosion, or damage early. Check for:
Surface rust or coating degradation
Cracks or chips in the magnet or housing
Loose mounting hardware or adhesive failure
Signs of demagnetization, such as reduced holding force
Clean the assembly periodically to remove dust or debris that might interfere with magnetic contact. If damage or strength loss is detected, replace or repair the magnetic assembly promptly to avoid operational issues.
Conclusion
Magnetic assemblies concentrate and protect magnets to deliver stronger, more durable holding power. Their design improves efficiency and lifespan compared to bare magnets. Choosing quality assemblies ensures reliable performance and easier installation, especially in demanding environments. Innovations continue to enhance material strength and environmental resistance. SDM Magnetics Co., Ltd. offers expertly engineered magnetic assemblies that combine these benefits, providing long-term value and customized solutions for diverse industrial needs. Their products maximize magnetic performance while ensuring durability and safety.
FAQ
Q: What are magnetic assemblies and how do they work?
A: Magnetic assemblies are engineered units that concentrate and direct magnetic fields using steel housings and pole pieces. This design enhances holding force and protects the magnet, improving durability and efficiency compared to bare magnets. Understanding how magnetic assemblies work helps in selecting or designing assemblies tailored to specific applications.
Q: Why choose custom magnetic assemblies from a magnetic assembly manufacturer?
A: Custom magnetic assemblies are tailored to meet unique size, strength, and environmental requirements. A magnetic assembly manufacturer ensures optimal magnetic assembly design, component compatibility, and protective housing to maximize performance and longevity in specialized applications.
Q: What factors affect the magnetic assembly function and strength?
A: Magnetic assembly strength depends on magnet material, housing type, pole piece design, air gap, and operating conditions. Proper magnetic assembly setup and material selection ensure efficient magnetic assembly mechanism and prevent demagnetization or damage.
Q: How do magnetic assemblies compare to bare magnets?
A: Magnetic assemblies offer higher holding force, improved durability, reduced flux leakage, and easier installation than bare magnets. Their steel housings focus the magnetic field and protect the magnet, enhancing overall magnetic assembly performance and lifespan.
Q: What maintenance is required for magnetic assemblies?
A: Regular inspection for damage, corrosion, and holding strength is essential. Clean surfaces, ensure proper alignment, and protect assemblies from heat and mechanical shock to maintain magnetic assembly function and extend service life.
