SDM micro brushless coreless motors are designed for compact, lightweight, and high-speed applications that require efficient power conversion, fast response, and smooth operation. With low rotor inertia, reduced energy loss, and reliable performance in precision systems, these motors are well suited for portable electronics, robotics, medical devices, aerospace equipment, and other advanced applications.
Micro brushless coreless motors, also known as hollow cup motors or ironless motors, are compact drive solutions developed for applications that demand high speed, fast response, and efficient operation in a very limited installation space. Unlike conventional motors with an iron core armature, coreless motors use a lightweight, self-supporting winding structure that helps reduce rotor mass and moment of inertia. In brushless designs, electronic commutation further improves service life, reduces maintenance, and supports smooth, reliable high-speed performance.
At SDM Magnetics, we develop micro brushless coreless motors for customers who require compact motion systems with precise control, low energy consumption, and dependable performance. These motors are particularly suitable for battery-powered devices, portable equipment, miniaturized actuators, and other systems where efficiency, weight reduction, and rapid dynamic response are critical.
Why Coreless Brushless Motors Are Used in Compact Devices
One of the main benefits of a coreless motor structure is the elimination of the traditional iron core. This significantly reduces inertia and helps lower internal losses during operation, allowing the motor to accelerate and decelerate quickly while maintaining efficient energy conversion. For portable and battery-powered products, this can contribute to lower power consumption and longer operating time.
When combined with brushless commutation, the motor can also deliver better durability and a longer service life compared with traditional brush-type solutions. This makes micro brushless coreless motors an attractive option for compact systems that require continuous operation, high rotational speed, and stable output under demanding conditions.
Because of their lightweight structure and efficient operation, these motors are widely used in compact electromechanical systems where every gram and every millimeter matter. They are especially suitable for designers seeking a balance of small size, high speed, low vibration, and smooth running behavior.

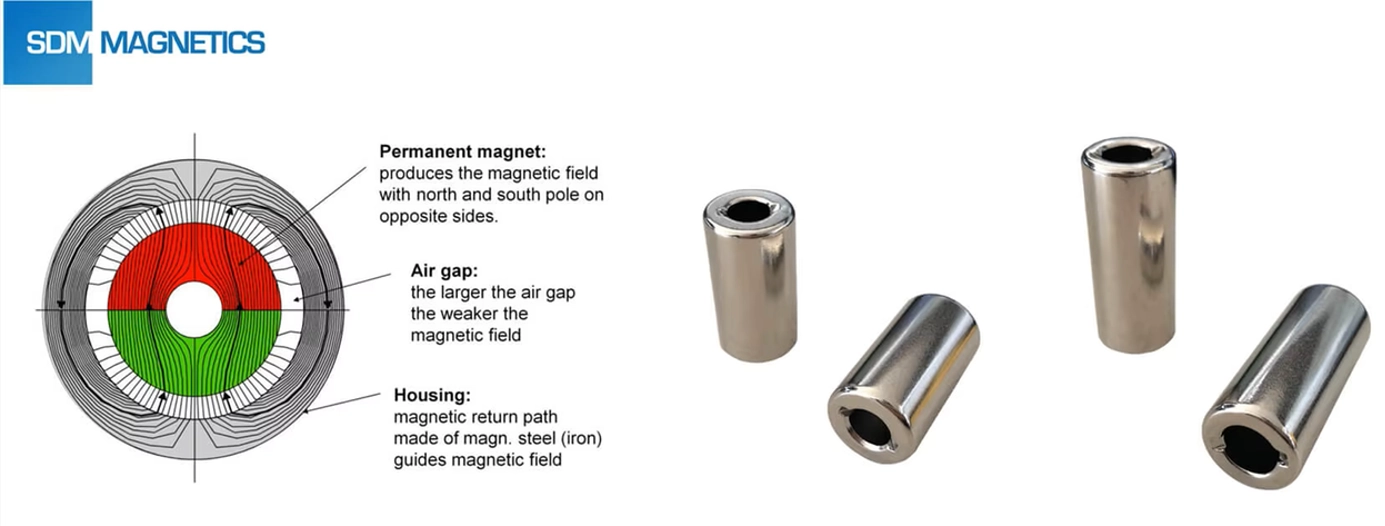

Magnetic Circuit Design of Coreless Motors
Key Advantages of SDM Micro Brushless Coreless Motors
SDM micro brushless coreless motors are engineered to support the needs of modern precision equipment. Their compact electromagnetic structure allows easy integration into space-constrained devices while helping maintain strong performance in a lightweight package.
Key advantages include:
Compact size for miniaturized product designs
Lightweight construction for portable and dynamic systems
Low rotor inertia for rapid response and fast acceleration
High efficiency for reduced energy loss
Smooth rotation with low vibration and low noise
Reliable high-speed performance for precision applications
Long service life supported by brushless commutation
Flexible customization for application-specific requirements
For compact electronic devices and precision motion platforms, these advantages can help improve system responsiveness, operating efficiency, and overall design flexibility.
Designed for High-Speed and Precision Motion
Micro brushless coreless motors are often chosen for systems that require more than just rotation. In many cases, they are part of a precision motion solution where speed stability, compact geometry, and predictable control behavior are all important. SDM focuses on the practical integration needs of these applications, helping customers select the right motor structure according to voltage, speed target, load condition, installation envelope, and operating cycle.
For 3.7V and other low-voltage configurations, micro brushless coreless motors are especially suitable for compact and battery-powered equipment. Their efficient design helps support energy-sensitive applications where motor performance must be achieved without adding unnecessary size or weight.
Customization and Engineering Support
At SDM Magnetics, we understand that micro motor projects often require application-specific design rather than a one-size-fits-all solution. That is why we support customization based on customer requirements, including motor size, winding design, shaft configuration, lead wire arrangement, and performance target. Our engineering team works with customers from concept evaluation to prototype development and production support.
We also pay close attention to the practical challenges of miniaturized motor systems, including dimensional tolerance, thermal behavior, assembly accuracy, and long-term reliability. Through engineering collaboration and manufacturing control, we help customers develop motor solutions that match the actual needs of the end product.
Typical Applications
SDM micro brushless coreless motors are suitable for a wide range of advanced applications, including:
Portable electronic devices
Precision robotic systems
Miniature actuators
Aerospace and navigation equipment
Medical devices
Consumer electronics
Automotive micro-drive systems
Small pumps, instruments, and precision mechanisms
These application areas typically require compact size, fast dynamic response, efficient operation, and reliable performance in continuous or intermittent duty.
Why Choose SDM Magnetics
SDM Magnetics combines experience in electromagnetic design, magnetic materials, and precision manufacturing to support advanced motor projects. Our goal is not only to supply a micro motor, but to help customers build a better motion solution for their final product.
Why customers choose SDM:
Experience in precision magnetic and motor-related products
Support from design stage to production
Focus on compact, efficient, and application-oriented solutions
Customization capability for different industries and structures
Quality-oriented manufacturing and engineering cooperation
Suitable for OEM development and industrial integration
Whether you are developing a portable device, a precision instrument, or a compact motion platform, SDM can help you identify the right micro brushless coreless motor solution for your project.
Contact Us for Custom Micro Coreless Motor Solutions
If you are looking for a micro brushless coreless motor for a compact, high-speed, or battery-powered application, SDM Magnetics is ready to support your project. Send us your size limit, voltage, speed target, load condition, and application environment, and our engineering team will recommend the most suitable motor configuration for your design.
FAQ
What is a micro coreless motor?
A micro coreless motor is a small motor that uses an ironless or hollow cup winding structure instead of a traditional iron core armature. This design helps reduce rotor mass, lower inertia, and improve dynamic response.
What are the benefits of a brushless coreless motor?
Brushless coreless motors offer compact size, low inertia, high efficiency, smooth rotation, long service life, and reliable high-speed performance, making them suitable for precision and portable applications.
Are SDM micro brushless coreless motors suitable for battery-powered products?
Yes. Their efficient operation and lightweight structure make them a good choice for many compact and battery-powered devices, especially low-voltage applications such as 3.7V systems.
Can the motor be customized?
Yes. SDM can support customization based on application requirements, including dimensions, winding configuration, shaft design, lead wires, and performance targets.
What applications are these motors used in?
They are commonly used in robotics, medical devices, aerospace equipment, navigation systems, consumer electronics, automotive micro-drive systems, and other compact precision devices.
SDM Coreless Motor
Coreless motor is a new type of micro motor which also known as hollow cup motor. coreless motor utilizes slotless and coreless coil as the armature winding which pierced iron core structure of traditional motor, then significantly reduce weight and momen of inertia and fundamentally eliminate the eddy current loss of iron core, therefore, energy loss of motor during the running process will be decreased.
The development of micro coreless motors involves several stages and considerations, leveraging advancements in materials, manufacturing techniques, and design principles to achieve compact size, high efficiency, and precise performance. Here's a detailed overview of how these motors are developed:
1. **Concept and Design Phase**:
- **Requirements Analysis**: Engineers define the performance specifications such as torque, speed, size constraints, and efficiency targets based on the intended application.
- **Electromagnetic Design**: Designing the coreless motor involves creating electromagnetic circuits that optimize magnetic field distribution and minimize losses. This includes designing the windings, magnetic circuit, and rotor configuration to achieve desired performance characteristics.
2. **Materials Selection**:
- **Copper Wire**: High-conductivity, thin copper wire is typically used for the windings to ensure efficient electrical conductivity and minimize resistance.
- **Magnetic Materials**: Permanent magnets or magnetic alloys are chosen for the rotor to provide the necessary magnetic field strength while keeping weight and size minimal.
3. **Manufacturing Process**:
- **Winding**: Specialized winding machines are used to precisely wind the copper wire around the coreless stator. This process requires high precision to achieve the desired number of turns and packing density.
- **Assembly**: Components such as the stator, rotor, bearings, and shaft are assembled with care to ensure proper alignment and minimal friction.
- **Encapsulation**: Many micro motors are encapsulated in epoxy or other protective materials to enhance durability and protect against environmental factors.
4. **Miniaturization Challenges**:
- **Precision Engineering**: Micro motors require extremely precise manufacturing tolerances due to their small size.
- **Heat Management**: Efficient heat dissipation is critical in micro motors to prevent overheating and ensure reliable operation over extended periods.
- **Power Density**: Maximizing power output relative to size and weight is a significant challenge, often requiring innovative designs and materials to achieve optimal performance.
5. **Testing and Validation**:
- **Performance Testing**: Motors undergo rigorous testing to verify compliance with specifications for torque, speed, current draw, and efficiency.
- **Durability Testing**: Endurance tests assess the motor’s lifespan under various operating conditions to ensure reliability.
- **Environmental Testing**: Motors are tested for resistance to temperature variations, humidity, shock, and vibration to ensure they can operate reliably in diverse environments.
6. **Iterative Improvement**:
- Based on test results and feedback from initial prototypes, iterative improvements are made to refine the motor design, optimize performance, and address any identified issues.
- Advances in materials science, manufacturing techniques, and computational modeling often drive continuous improvement in micro motor design and performance.
7. **Application and Market Integration**:
- Micro coreless motors find applications across various industries including robotics, aerospace, medical devices, consumer electronics, and automotive sectors.
- Customization and adaptation to specific application requirements further drive the development and integration of micro coreless motors into specialized systems and devices.
In conclusion, the development of micro coreless motors involves a comprehensive approach combining theoretical design, advanced materials selection, precision manufacturing processes, rigorous testing, and continuous improvement to meet the demanding requirements of modern applications across diverse industries.
