In the world of high-end rotating machinery—such as blowers, air compressors, and refrigeration compressors—magnetic bearing high-speed motors are driving a true "oil-free revolution." No gearbox, no mechanical friction, no lubricating oil. The only rotating core component levitates in a magnetic field and can reach speeds of tens of thousands of revolutions per minute. However, for such a sophisticated system to operate both fast and stably, the matching of three critical parameters—speed, power, and retaining sleeve—is essential. Let’s systematically explore the selection logic and key considerations for Magnetic Bearing / High-Speed Motor Rotors.

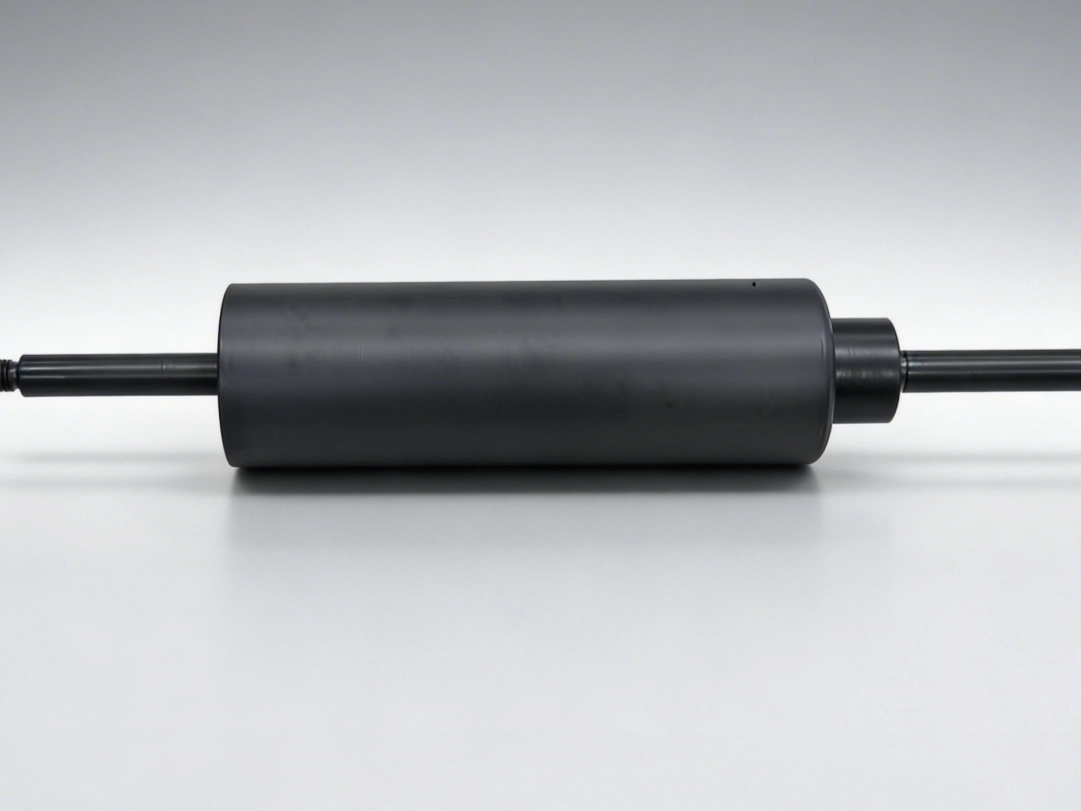

I. First, Understand What a Magnetic Bearing / High-Speed Motor Rotor Is
A magnetic bearing (also known as a magnetic bearing) is a high-performance support device that uses controllable electromagnetic force to achieve non-contact rotor levitation. It differs fundamentally from traditional ball bearings, sliding bearings, and oil-film bearings: magnetic bearings employ electromagnetic force, together with sensors and a closed-loop control system, to achieve stable rotor levitation with zero contact and zero friction.
Inside a magnetic bearing motor, multiple displacement sensors monitor the rotor’s radial and axial positions in real time. The controller processes the displacement signals and sends control currents to the magnetic bearing coils, generating electromagnetic forces that keep the rotor constantly levitated. At this point, the rotor has no contact with any other component. The controller further feeds a frequency-controlled current into the stator, producing a rotating magnetic field that drives the rotor to spin at high speed.
This technology brings a host of disruptive advantages: no friction, no lubrication, zero wear, enabling 100% oil-free operation. Compared with traditional geared drive systems, it delivers higher speeds, longer service life, and lower maintenance costs. In blower and compressor applications, the package volume can shrink by 60–70% while energy savings exceed 30%. It is precisely these benefits that are driving the increasingly widespread adoption of magnetic bearing high-speed motors in environmental protection, defense, aerospace, food and pharmaceutical processing, and flywheel energy storage.
II. Speed: How Fast Is the Right Speed?
2.1 What Is the Speed “Ceiling”?
Thanks to magnetic bearing technology, the rotor speed is no longer limited by the physical constraints of mechanical bearings. Today, the operating speed range of magnetic bearing high-speed motors is remarkably wide: small-power machines can reach 30,000 to 50,000 rpm; mid-power machines (hundreds of kilowatts) commonly operate in the 15,000 to 30,000 rpm range; and high-power machines (megawatt class) typically run between 10,000 and 20,000 rpm. For instance, a magnetic bearing blower drive motor developed by CRRC Yongji Electric achieves 22,000 rpm, while CompAir’s Quantima magnetic bearing centrifugal air compressor runs at up to 60,000 rpm.
2.2 Critical Speed—The Easiest Trap in Selection
Higher speed is not always better. During selection, one must pay special attention to a key concept: critical speed. When the rotor’s rotational speed reaches a certain value, centrifugal force can excite severe lateral vibrations, and the amplitude increases dramatically—this is the “critical speed.” If the operating speed coincides with or is too close to a critical speed, resonance will occur, potentially leading to shaft fracture and failure.
Therefore, a sound rotor design must ensure that the operating speed is well away from all orders of critical speed. In engineering practice, the rotor’s first bending critical speed is typically required to be significantly higher than the maximum operating speed (a “subcritical design”), so as to maintain an adequate safety margin over the entire operating range. An analysis of one magnetic bearing motor rotor showed that its first bending critical speed was 57,595 rpm—far above the working speed of 30,000 rpm—confirming a safe and reliable design. The support stiffness of the magnetic bearings also influences critical speed: higher stiffness raises the critical speeds associated with rigid-body modes but has a relatively modest effect on bending modes.
2.3 Linear Velocity—Another Criterion
Beyond the rpm number, what truly determines the rotor’s mechanical loading limit is linear velocity. Linear velocity = π × rotor outer diameter × rotational speed. It directly governs the magnitude of the centrifugal force that the permanent magnet and retaining sleeve must endure. During selection, do not focus solely on “how fast it spins”; always evaluate, in combination with the rotor diameter, whether the resulting linear velocity lies safely within the material and structural limits.
III. Power: How to Choose From Small to Large?
3.1 What Speed and Operating Conditions Does Rated Power Correspond To?
Magnetic bearing high-speed motors cover a very broad power spectrum, from several tens of kilowatts for small blowers to megawatt-class large compressor trains, all with proven solutions available. The key to power selection is to clearly define the flow rate and head (or pressure) required by the application.
Taking a blower application as an example, a certain model of magnetic bearing motor was designed according to blower specifications, with both the rotor’s electromagnetic scheme and the magnetic bearing parameters determined accordingly. In the air compressor sector, Honglu Technology has introduced a 1 MW magnetic bearing centrifugal air compressor—China’s first megawatt-class magnetic bearing air compressor—achieving truly 100% oil-free operation.
3.2 The Power-Speed Matching Rule
For a given torque, the motor’s output power is proportional to speed—this is the core driving force behind high-speed designs. However, higher power means greater rotor current loading, which brings more severe eddy-current losses and thermal issues.
As a general guide: Small power (≤100 kW) can be paired with higher speeds (40,000–60,000 rpm) for small compressors, vacuum pumps, etc. Medium power (100–500 kW) is often paired with 15,000–30,000 rpm for blowers, refrigeration compressors, etc. High power (≥500 kW) usually has speeds controlled within 10,000–20,000 rpm for large industrial air compressors and process compressors. Megawatt-class machines reduce speed further to ensure rotor strength and system stability.
3.3 Efficiency Index
Because they eliminate mechanical friction losses, magnetic bearing high-speed motors generally exhibit very high system efficiency. CRRC Yongji Electric’s products can reach ≥96% efficiency and, under variable-frequency operation, can achieve energy savings of up to 30% compared with traditional Roots blowers. When selecting, you can ask the supplier to provide the efficiency curve under rated conditions as a reference.
IV. The Retaining Sleeve: How to Match the Rotor’s “Safety Belt”?
This is the most easily overlooked yet most critical part of the selection process. Permanent magnet materials (such as sintered NdFeB) have an “Achilles’ heel”: they offer very high compressive strength but a tensile strength that is only about one tenth of the compressive strength (generally ≤80 MPa). During high-speed rotation, the enormous centrifugal force generates a large tensile stress in the permanent magnet. Without protection, the magnet will shatter.
Therefore, a high-strength protective sleeve (retaining sleeve) must be fitted onto the outer surface of the permanent magnet. By means of an interference fit between the sleeve and the magnet, a certain pre-compressive stress is applied to the magnet, compensating for the tensile stress induced by centrifugal force during high-speed rotation.
4.1 Head-to-Head Comparison of Three Retaining Sleeve Materials
Three retaining sleeve materials dominate current engineering practice: superalloy, titanium alloy, and carbon-fiber-reinforced composite.
Superalloy (e.g., GH4169): High elastic modulus, producing a larger pre-stress for the same dimensions and interference fit; large coefficient of thermal expansion, allowing lower temperature during shrink fitting, which simplifies assembly and enables precise control of the interference. The downside is higher density and deadweight, leading to a larger self-induced centrifugal force. Moreover, it generates high-frequency eddy-current losses that can cause severe rotor heating. A simulation study of a 300 kW, 15,000 rpm motor also confirmed that under a steel-alloy sleeve the motor faces serious thermal issues.
Titanium alloy (e.g., TC4): Low density, so the sleeve’s own centrifugal loading is small; low coefficient of thermal expansion, meaning that when the rotor heats up, the sleeve’s pressure on the permanent magnet actually increases, eliminating any “thermal loosening” tendency. However, TC4 titanium alloy requires a larger initial interference fit than carbon fiber.
Carbon-fiber-reinforced composite: Offers the highest strength-to-weight ratio, so the sleeve can be made thinner. Carbon fiber is essentially non-conductive and generates virtually no eddy-current loss during rotation. The drawbacks are poor thermal conductivity, which is detrimental to magnet heat dissipation; a more complex assembly process; difficulty in precisely controlling the interference; and the fact that carbon fiber is a brittle material that may develop damage cracks during shrink fitting.
Selection rule of thumb: High-speed, small-diameter permanent magnet rotors mostly use alloy sleeves (the metal shrink-fitting process is mature and reliable); large-diameter, high-linear-velocity permanent magnet rotors mostly use carbon-fiber sleeves (where the light-weight, high-strength advantage is prominent and the sleeve can be designed thinner).
4.2 Retaining Sleeve Thickness and Interference Fit—Two Numbers That Must Be Accurately Calculated
A thicker sleeve is not always better, nor is a thinner sleeve necessarily more cost-effective. The sleeve thickness and interference amount are closely coupled:
Sleeve too thick: impairs rotor heat dissipation and adds to the centrifugal load of the sleeve itself;
Sleeve too thin: fails to provide adequate protection, leaving the permanent magnet at risk of excessive tensile stress;
Interference too large: makes assembly difficult and may even damage or crack carbon fiber materials;
Interference too small: pre-stress is insufficient, and protection may fail at high speed.
Taking the study of a large high-speed permanent magnet motor rotor as an example: to ensure the permanent magnet tensile stress meets the strength requirement, a 10 mm sleeve needs an interference of over 1 mm; a 12 mm sleeve needs about 0.7–0.8 mm interference; and a 14 mm sleeve needs only 0.5–0.6 mm interference.
Now look at a specific design case: for a 200 kW, 18,000 rpm permanent magnet bearing motor rotor, a carbon-fiber retaining sleeve with a wall thickness of 3 mm was ultimately adopted, with an interference of 0.12 mm between the sleeve and the permanent magnet. Safe operation of the rotor was guaranteed once the interference exceeded 0.1 mm—the maximum stress in the carbon fiber layer was about 284 MPa, below its own strength limit, and the maximum stress in the NdFeB magnet also dropped to a safe range.
For extreme operating conditions, the interference design must also consider the influence of temperature. An analysis of a 60,000 rpm high-speed motor rotor showed that as speed and temperature increase, the actual interference between the sleeve and the permanent magnet decreases due to material deformation, with the cumulative reduction reaching 0.06–0.08 mm. Therefore, an adequate initial interference must be reserved to compensate for thermal losses. The most critical stress condition for the sleeve usually occurs under the “cold rotation” case, which must be checked carefully.
4.3 Eddy-Current Loss—The “Hidden Temperature Difference” You Can’t Ignore When Choosing Materials
The choice of sleeve material also directly affects the rotor’s eddy-current losses, which in turn influences the magnet’s operating temperature and the risk of demagnetization. A study on a 55 kW, 24,000 rpm high-speed permanent magnet motor compared alloy sleeves, carbon-fiber sleeves, and a composite solution of carbon fiber plus a copper shielding layer. The results indicated that the composite scheme with a copper shielding layer is not the best under all conditions; it yields the lowest total eddy-current loss only under specific conditions, such as high current harmonic content or high electrical frequency. This means the final sleeve selection must be based on a comprehensive comparison that incorporates the harmonic characteristics of the actual operating condition—simple empirical formulas should not be applied uncritically.
V. Speed-Power-Sleeve: Matching Framework and Selection Process
By integrating the three parameters above, we can summarize the following matching framework:
High speed + small-to-medium power: Carbon-fiber sleeve is the first choice, leveraging its light weight, high strength, and absence of eddy-current loss; attention must be paid to the heat dissipation design.
Medium speed + high power: Alloy sleeves (superalloy or titanium alloy) are more mature and reliable. Although eddy-current losses are larger, they offer good heat dissipation and controllable assembly processes.
Very high power (MW class): Often requires a reduction in speed to ensure structural integrity; the sleeve solution must be selected through an integrated approach supported by simulation verification.
Recommended selection flow:
Define the operating conditions: Determine the flow rate, head/pressure, working medium, etc., and calculate the required shaft power.
Select the speed range: Based on the load characteristics, establish the operating speed range, and ensure resonance zones are avoided through critical speed analysis (a Campbell diagram must be used).
Preliminary rotor design: Determine the rotor outer diameter, permanent magnet dimensions, and structural form (surface-mounted/cylindrical/interior-mounted).
Initial sleeve solution: Choose the sleeve material type based on the speed–diameter combination (linear velocity) and calculate the required sleeve thickness and interference.
FEA verification: Perform stress analysis and eddy-current loss analysis separately under cold start, rated operation, extreme overspeed, and high-temperature conditions to ensure that all components are within the safety margin.
Backup bearing configuration: Do not forget to equip the system with reliable backup bearings—they act as the “airbag” for the rotor in the event of power failure or system malfunction. Select them according to the rotor weight, speed, and drop-impact loads.
Experimental verification: Finally, confirm the accuracy of the calculations through prototype dynamic balancing tests and run-up experiments.
VI. Common Misconceptions and Pitfall Avoidance
Misconception 1: “Higher speed is always better”
While magnetic bearings indeed remove the speed limits of mechanical bearings, the rotor’s critical speeds and material strength still impose physical upper limits. Blindly pursuing higher speed without critical speed verification can lead to abnormal vibration at best and shaft fracture at worst.
Misconception 2: “A thicker sleeve is always safer”
An overly thick sleeve adds to its own centrifugal load and impedes heat dissipation; too large an interference can cause carbon fiber cracking or assembly failure. The optimum values must be determined through precise FEA calculations.
Misconception 3: “Carbon fiber is always superior to alloy”
Although carbon fiber sleeves have no eddy-current loss and are light and strong, they suffer from poor heat dissipation and complex processing. For applications with good cooling conditions and where ease of assembly is critical, an alloy sleeve is often the more pragmatic choice. No material is universally “better”—it is only about whether it fits the specific operating conditions.
Misconception 4: “You can just use an empirical interference value”
Every rotor has a unique combination of dimensions, speed, and materials. The interference must be determined case by case through analytical calculations and FEA simulation. Blindly copying the “empirical value” from another project will lead to either inadequate protection or assembly failure.
Selecting a Magnetic Bearing / High-Speed Motor Rotor is a systematic engineering task that requires the coordinated optimization of multiple parameters. Speed determines the upper performance boundary of the equipment, power defines the range of application, and the retaining sleeve sets the safety baseline of the system. These three factors constrain and condition each other; only by identifying the optimal balance through scientific calculation and simulation can magnetic bearing technology truly deliver its unique advantages of “zero friction, high speed, and long service life.”
