Electric motors are at the heart of modern technology. They transform electrical energy into mechanical motion, powering everything from household appliances to industrial machines, robots, and medical equipment. Among the different motor types, DC motors are especially popular because they are simple, efficient, and reliable. Within this category, there are several variations, including brushed, brushless, cored, and coreless designs. Each variation has unique strengths that make it suitable for specific applications.

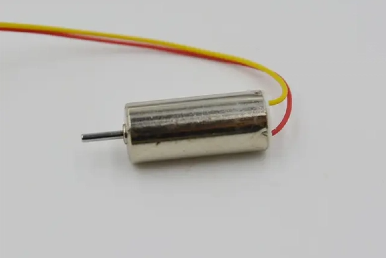

One of the most advanced and fascinating designs is the brushed coreless motor. It combines the traditional brushed DC motor structure with a modern twist: a rotor that has no iron core. This unique combination results in a motor that is compact, lightweight, and extremely responsive. To fully understand what a brushed coreless motor is, it is helpful to explore its structure, working principle, advantages, disadvantages, and applications.
The Basics of a Brushed Motor
Before diving into the coreless design, it is important to understand how a standard brushed motor works. In a traditional brushed DC motor, the rotor (also called the armature) consists of copper windings wrapped around an iron core. The stator provides a fixed magnetic field, which may come from permanent magnets or electromagnets.
When current flows through the rotor windings, it generates a magnetic field that interacts with the stator’s magnetic field. This interaction produces torque, which causes the rotor to spin. To ensure that the rotor keeps turning in the same direction, a commutator and brushes are used. The brushes, typically made of carbon, maintain electrical contact with the rotating commutator. They periodically switch the direction of current in the rotor windings so that continuous rotation occurs.
This brushed design is simple and effective, but the iron core inside the rotor adds weight and inertia. As a result, the motor may not respond quickly to changes in current, and it can generate losses due to eddy currents and magnetic hysteresis.
The Coreless Motor Design
The coreless motor was developed to overcome these limitations. Instead of winding the copper wire around an iron core, the rotor windings are formed into a hollow, self-supporting cylinder or basket-like structure. This structure spins within the magnetic field created by the stator. Since there is no iron core, the rotor becomes much lighter and has significantly less inertia.
This unique design results in several important benefits. First, the motor can accelerate or decelerate much faster because the rotor is so light. Second, efficiency improves because there are no core-related losses, such as eddy currents. Third, motion is smoother, with very little cogging, which is the jerky motion caused when the rotor aligns with stator poles in cored designs.
When the coreless design is combined with brushes, the result is the brushed coreless motor. It maintains the simple commutation method of a brushed motor while benefiting from the lightweight, efficient rotor of a coreless design.
How a Brushed Coreless Motor Works
The working principle of a brushed coreless motor is similar to that of a standard brushed motor, but with the key difference in the rotor’s structure. The brushes and commutator still provide current to the rotor windings, switching polarity as the motor spins. The rotor windings, however, are not bound to a heavy iron core. Instead, they are free-standing coils arranged in a hollow cylindrical form.
When current flows through these windings, they interact with the stator’s magnetic field, producing torque. Because the rotor is so light, even a small current can create rapid movement. This makes brushed coreless motors extremely responsive. They are capable of starting, stopping, and reversing direction almost instantly, which is valuable in applications that require precision control.
Advantages of Brushed Coreless Motors
Brushed coreless motors offer several key advantages over traditional cored brushed motors.
The most noticeable benefit is fast response time. The low inertia of the rotor allows the motor to change speed very quickly. This is why coreless motors are used in applications that demand agility, such as robotics and aerospace devices.
Another advantage is higher efficiency. Without an iron core, there are no eddy current losses, which means more of the input energy is converted into useful motion. This is particularly important in battery-powered devices where efficiency extends battery life.
They also provide smoother motion. The lack of cogging ensures that rotation is consistent, with minimal vibration. This makes them excellent for delicate applications, such as precision instruments or medical devices.
Additionally, their lightweight and compact design allows them to be used in space-constrained systems. Their ability to generate torque with minimal energy waste makes them valuable in portable or miniature devices.
Limitations of Brushed Coreless Motors
While brushed coreless motors have impressive strengths, they also come with certain limitations that must be considered.
One limitation is wear and tear of brushes. Like all brushed motors, they rely on physical contact between brushes and the commutator. Over time, this contact leads to friction, brush wear, and eventual maintenance or replacement needs. This makes them less suitable for applications requiring extremely long lifespans without maintenance.
Another challenge is their delicate structure. The absence of a sturdy iron core means the rotor windings are more fragile and require careful handling. Excessive shock, vibration, or overload can damage the windings more easily than in cored designs.
They are also generally more expensive due to the precision manufacturing required to build self-supporting windings. For cost-sensitive applications, this can be a disadvantage.
Finally, brushed coreless motors may not deliver as much raw torque as cored designs of the same size. Their strength lies in speed and precision rather than brute force.
Applications of Brushed Coreless Motors
Despite their drawbacks, brushed coreless motors are widely used in fields where responsiveness and precision outweigh durability concerns.
In robotics, they are chosen for robotic arms, drones, and small autonomous machines where quick and precise movement is essential. Their lightweight design also reduces overall system weight, improving efficiency and performance.
In the medical field, brushed coreless motors power surgical instruments, infusion pumps, and prosthetic devices. Their smooth, vibration-free motion ensures accuracy and safety in sensitive procedures. For prosthetics, their fast response creates natural and lifelike movements for users.
In aerospace and defense, weight reduction is critical, and coreless designs provide efficiency without compromising performance. They are used in drones, satellite mechanisms, and guidance systems where rapid and reliable actuation is required.
Even in consumer electronics, brushed coreless motors find a place. They are used in cameras to control focusing and zoom systems, where smooth, quick, and quiet operation is important. They also appear in high-end audio devices, where precise motion helps reduce noise and distortion.
Choosing a Brushed Coreless Motor
The decision to use a brushed coreless motor depends on the priorities of the application. If the system demands quick acceleration, precision control, lightweight design, and high efficiency, then a brushed coreless motor is a strong choice. However, if the system must deliver high torque, withstand harsh conditions, or operate for many years without maintenance, a traditional cored motor or a brushless design may be more appropriate.
Engineers must balance cost, durability, efficiency, and performance requirements when making this choice. In many specialized industries, the benefits of brushed coreless motors make them worth the investment despite their higher price and maintenance needs.
The Future of Coreless Motor Technology
As technology advances, the limitations of brushed coreless motors are being addressed through innovations in materials and design. Better brush materials reduce wear, and improved manufacturing techniques make the windings stronger and more reliable. At the same time, brushless coreless motors are becoming more popular, offering the advantages of coreless design without the drawbacks of brushes.
Nonetheless, brushed coreless motors will continue to hold a place in many industries because of their simplicity, responsiveness, and compact form. They represent a balance between traditional motor technology and modern engineering needs.
Conclusion
A brushed coreless motor is a type of DC motor that combines the straightforward commutation of a brushed design with the lightweight and efficient rotor of a coreless structure. By removing the iron core from the rotor, these motors achieve rapid response, high efficiency, smooth motion, and reduced weight. While they come with challenges such as brush wear and delicate construction, they are invaluable in applications where precision and agility matter most.
From robotics and aerospace to medical devices and consumer electronics, brushed coreless motors play a critical role in driving the technology of today and tomorrow. Understanding their unique features helps engineers and designers make informed choices, ensuring that machines perform at their best in an increasingly demanding world.
