A Deep Dive into Axial Flux Motor Rotor Costs: Halbach Array Vs. Conventional Surface-Mounted — Precision Differences And Quotation Logic

Introduction: Starting with the Cost of a Single Rotor

With the rapid growth of the electric vehicle and humanoid robot industries, the axial flux motor is emerging as a new favorite in drive systems thanks to its high power density, compact size, and superior torque performance. However, the journey from the lab to mass production is blocked by a persistent hurdle—cost. Currently, the production cost of an axial flux motor is 20% to 30% higher than that of a conventional radial flux motor.

Within the total motor cost structure, permanent magnets occupy the largest single share, accounting for a dominant 35% to 40%. This means the choice of rotor permanent magnet topology—whether a conventional surface-mounted design or a higher-performance Halbach array—directly determines the core cost and competitiveness of the motor.

I. The Technical Essence of the Two Rotor Schemes

1.1 Conventional Surface-Mounted: The Simple, Brute-Force "Tile Pasting" Method

The technical principle of a surface-mounted rotor can be understood with a simple analogy: permanent magnets are directly bonded onto the rotor core surface, much like pasting tiles. Its characteristics are a simple structure, mature processes, and relatively low cost.

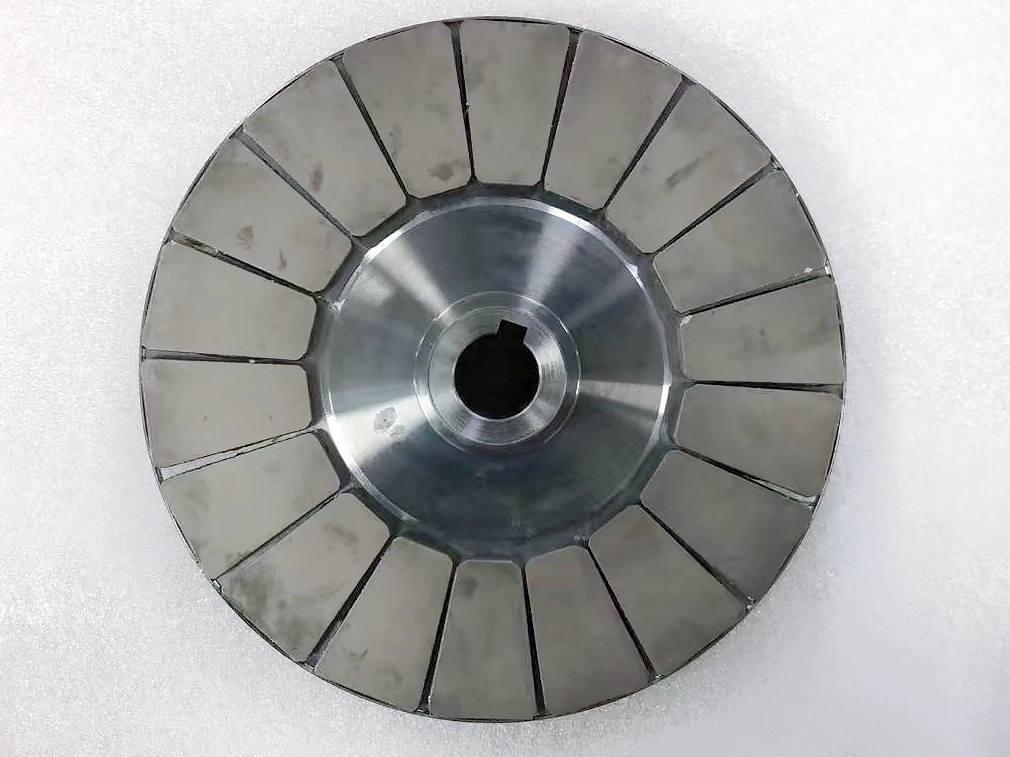

In an axial flux motor, the permanent magnets are usually arranged as fan-shaped or trapezoidal segments distributed uniformly around the circumference, with the magnetization direction uniformly perpendicular to the rotor plane. The air-gap flux density is directly determined by the remanence of the permanent magnets, and the magnetic field waveform approximates a trapezoid or square wave, requiring optimization of the magnet shape to suppress harmonic content.

1.2 Halbach Array: A Precision "Magnetic Puzzle"

The Halbach array was proposed by American scholar Klaus Halbach in 1979. Its core principle is to arrange permanent magnets with alternating radial and tangential magnetization directions to achieve a "single-sided magnetic field" effect—the magnetic flux lines are mutually reinforced on one side of the array, while the magnetic field on the opposite side is almost completely canceled out.

In motor applications, the Halbach array significantly increases the magnetic flux density in the air gap and substantially reduces leakage flux at the back of the rotor, even allowing the rotor back iron to be greatly thinned or eliminated entirely. Furthermore, the magnetic field distribution is closer to a sinusoidal waveform with lower harmonic distortion, resulting in reduced torque ripple and lower operating noise. Comparative experiments have shown that, under rated conditions, the torque constant of a motor using a Halbach multi-pole ring can be 76% higher than that of a conventional surface-mounted design.

II. Three-Axis Deep Deconstruction of Cost

Rotor cost is not a single figure but is formed by the superposition of three dimensions: permanent magnet material cost, processing and manufacturing cost, and the hidden costs driven by precision. The following breaks down each layer.

2.1 Permanent Magnet Material Cost: The Double Game of Quantity and Grade

Permanent magnet material cost = Permanent magnet usage × Unit weight price.

The material accounting for conventional surface-mounted:

The permanent magnet usage of a surface-mounted rotor depends on the target air-gap flux density to be achieved. Since all magnets are magnetized in the same direction, the magnetic circuit is relatively "crude," often requiring thicker magnets to reach the target flux density. The advantage, however, is that only one type of magnet with a single magnetization direction is needed, simplifying material management.

The material accounting for Halbach arrays:

Although Halbach arrays require magnets with multiple different magnetization directions, their single-sided flux concentration effect allows for a higher air-gap flux density to be obtained with the same amount of permanent magnet material. In other words, to achieve the same motor performance, the Halbach array can use less permanent magnet material.

However, this does not necessarily mean Halbach is cheaper—the true ceiling of the cost is determined by the magnet grade.

For neodymium-iron-boron (NdFeB) magnets, ranging from N35 to N52, each step up in grade increases the magnetic energy product by about 5%, but the cost can increase by 15% to 20%. Due to the difficulty of heat dissipation and high operating temperatures in axial flux motors, it is usually necessary to select magnets with an H rating (resistant to 120°C) or even an SH rating (resistant to 150°C) and above. High-coercivity grades require the addition of heavy rare earth elements such as dysprosium (Dy) and terbium (Tb), and differences in heavy rare earth usage often account for 60% to 80% of the price difference.

Because of its high power density characteristics, the Halbach array is often used in scenarios with extreme volume and weight constraints (such as aerospace and humanoid robot joints), forcing the selection of higher-grade magnets, further amplifying the material cost.

2.2 Processing and Manufacturing Cost: The Cost Ladder from Simple to Complex

Surface-Mounted: Mature processes, but not without thresholds

The processing of surface-mounted rotors is relatively mature. Permanent magnets are usually cut into shape and directly bonded to the rotor back iron. The process path is short and the degree of automation is high. It is important to note, however, that the assembly precision requirements for permanent magnets in axial flux motors are extremely high. Even a micron-level axial runout in the air gap can cause the rotor to be "sucked in," resulting in mechanical seizure or a sharp drop in torque output.

Moreover, magnet sequencing is an easily overlooked cost item. The N/S pole direction of each magnet must be accurate; a single reversed magnet will lead to direct scrap. Currently, the industry mainly uses machine vision to identify magnetic poles, which requires a significant equipment investment.

Halbach Array: A "Nightmarish" Puzzle Project

The difficulty of processing and assembling a Halbach array can only be described as a nightmare. Each pole needs to be spliced together from multiple segments with different magnetization directions, resulting in more magnet types and more complex magnetization orientations. During assembly, there are enormous repulsive forces between adjacent magnets, and the slightest carelessness can lead to magnet displacement or even fracture. As the industry saying goes, "If the assembly is slightly skewed, it's scrapped."

Furthermore, Halbach arrays require epoxy resins with a temperature resistance exceeding 200°C to prevent debonding at high temperatures. These special process requirements mean that the assembly of Halbach array rotors is currently highly dependent on manual operation, with a low level of automation and a significantly higher proportion of labor cost compared to the surface-mounted type.

2.3 The Hidden Costs of Manufacturing Precision and Performance Loss

If materials and processing are the "visible" costs, then precision issues are the "invisible" but potentially fatal hidden costs.

Air-gap control in axial flux motors is itself a major technical bottleneck. Unlike the cylindrical fit of a radial motor, the stator and rotor in an axial flux motor form a disc structure where parallel plates face each other, significantly lengthening the cumulative tolerance chain. Studies show that rotor eccentricity causes distortion of the air-gap magnetic field, with unequal field amplitudes under each pole pair, directly affecting torque ripple and operational smoothness.

The difference in precision cost between the two schemes is particularly significant:

• Surface-Mounted: With a single magnet type, the assembly process is relatively controllable. Precision losses are mainly determined by bonding tolerances and air-gap uniformity. Although there is some yield pressure, the process maturity is high and overall manageable.

• Halbach Array: The splicing of multiple magnet segments lengthens the cumulative tolerance chain. Any positional or angular deviation of a single segment will destroy the magnetic shielding effect of the array, leading to increased flux leakage and distortion of the air-gap flux density waveform. More critically, the Halbach array is extremely sensitive to the alignment angle between magnets. Once deviations occur, not only does performance decrease, but additional harmonic losses and vibration noise are also generated. This precision sensitivity translates to higher scrap rates and inspection costs.

In a mass production scenario, this difference in precision is further magnified: due to the existence of manufacturing tolerances, the consistency of electromagnetic characteristics between motors is often not as good as that of radial motors. The same control algorithm, when applied to a different motor, can lead to performance deviation. The Halbach array is particularly sensitive to this, which in engineering practice often means more debugging hours and higher after-sales risk.

III. Quotation Logic: Why Isn't the Final Price 1+1=2?

Once the cost deconstruction above is understood, the supplier's quotation logic becomes readily apparent.

The underlying logic of supplier quotations:

1. Material Cost Plus Markup: Magnet grade and quantity are the most direct cost anchors. High-grade magnets have a higher unit price, and at the same time, high grades often mean small-batch customization, making it difficult to enjoy volume procurement discounts, further increasing unit cost.

2. Process Difficulty Premium: Due to high assembly complexity and low automation rates, quotations for Halbach arrays usually include higher labor hour costs and equipment depreciation allocations. Especially for small-batch orders, the per-unit allocation of fixed costs such as tooling, fixtures, and magnetization equipment is extremely high.

3. Precision Assurance and Yield Loss Allocation: The scrap rate for Halbach arrays is significantly higher than for surface-mounted types. Suppliers need to factor this expected loss into their quotations. Based on experience, for a Halbach array rotor of the same specification, the implicitly allocated yield loss in the quotation can reach 5% to 15% of the material cost.

4. Inspection and Certification Premium: High-performance Halbach rotors typically require additional magnetic field waveform inspections and dynamic balancing calibrations; these inspection equipment and labor hours also form part of the quotation.

5. Batch Effect: The surface-mounted type is suitable for large-scale automated production, with marginal costs falling rapidly as output increases. In contrast, due to the difficulty of automation, the marginal cost decline curve for Halbach arrays is far flatter, making the price difference particularly stark in small-batch scenarios.

IV. Selection Guide: When Should You Pay More?

Understanding the cost differences and quotation logic, the final engineering decision depends on the balance between the performance requirements of the application scenario and the cost tolerance:

• Choose Conventional Surface-Mounted: Suitable for cost-sensitive scenarios where volume and weight constraints are not extremely harsh, such as general industrial drives, household appliances, and small to medium-sized equipment. When space is ample, the insufficient flux density can be compensated for by appropriately increasing the rotor diameter, without the need to pay the premium for a Halbach array.

• Choose Halbach Array: Suitable for scenarios with extreme demands for power density and torque quality, such as humanoid robot joints (requiring high-torque, low-speed-ratio precise control), aerospace actuators, and high-end precision servo systems. When volume and weight are rigid hard constraints, the performance gain brought by the Halbach array far exceeds its cost increment.

A practical decision-making framework:

If "how much can be saved per kilogram" is more important in your project than "how much each rotor costs"—then seriously consider the Halbach array. Conversely, if cost pressure is the primary constraint, the surface-mounted solution is already sufficiently good. Do not pay an unnecessary premium for the hollow title of "technological advancement."

Conclusion

The choice of rotor topology for an axial flux motor is essentially a three-way game among permanent magnet quantity, processing difficulty, and precision cost. The conventional surface-mounted type occupies the mainstream market with its mature process and lower cost, while the Halbach array, with its higher performance ceiling, is irreplaceable in the high-end domain.

With the development of new technologies such as SMC powder metallurgy, ferrite substitution, and intelligent assembly, the overall manufacturing cost of axial flux motors is expected to gradually decrease. But no matter how technology evolves, understanding the underlying composition of rotor cost—from magnet grade to assembly tolerance, from material loss to yield allocation—remains a prerequisite for engineers to make rational decisions.

Cost is not simple addition; it is a comprehensive mapping of technical choices, process capabilities, and business strategy.
