What Factors Affect The Price of EV Resolver Sensors? Understanding The Quotation Logic in One Article

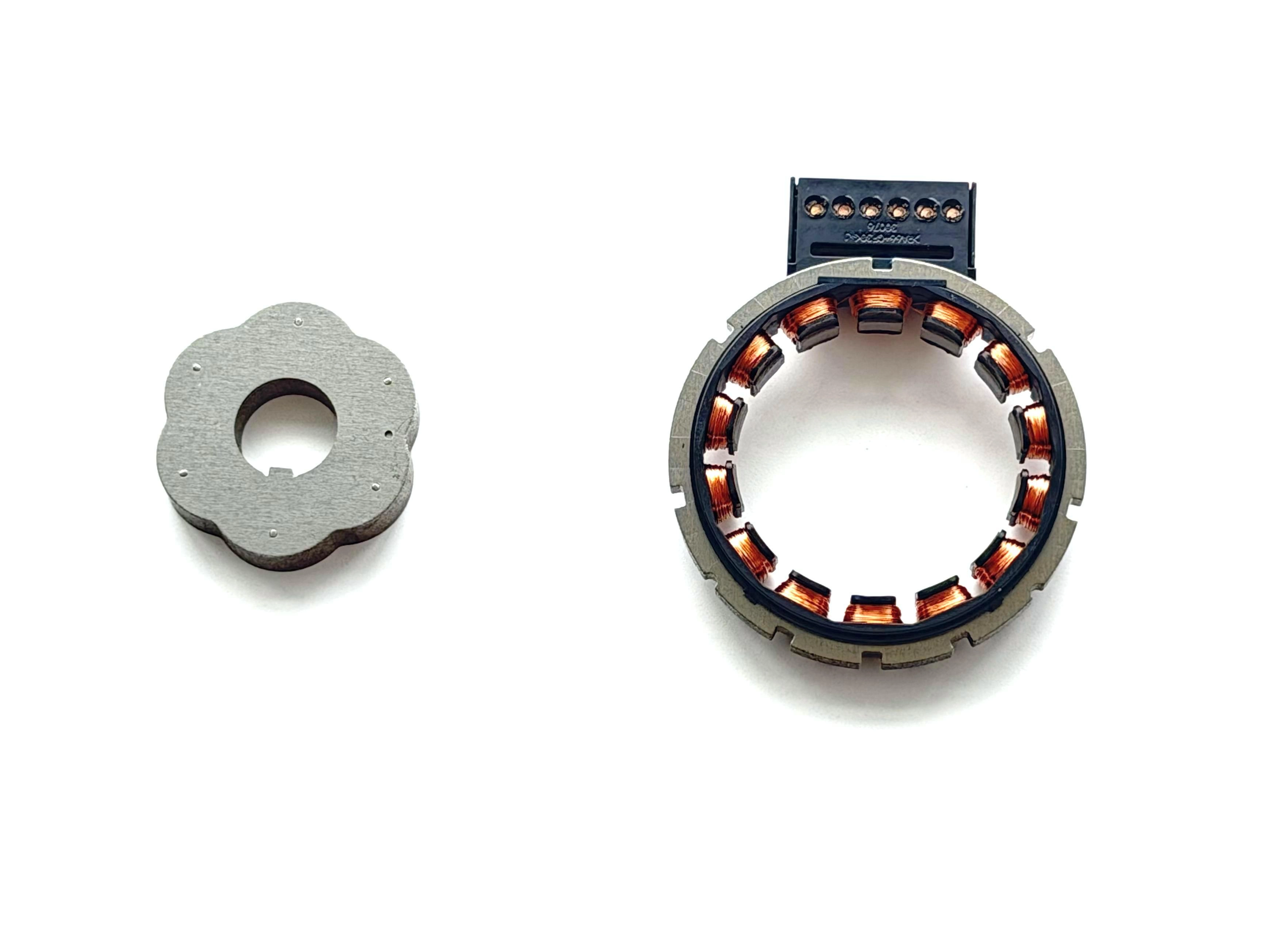

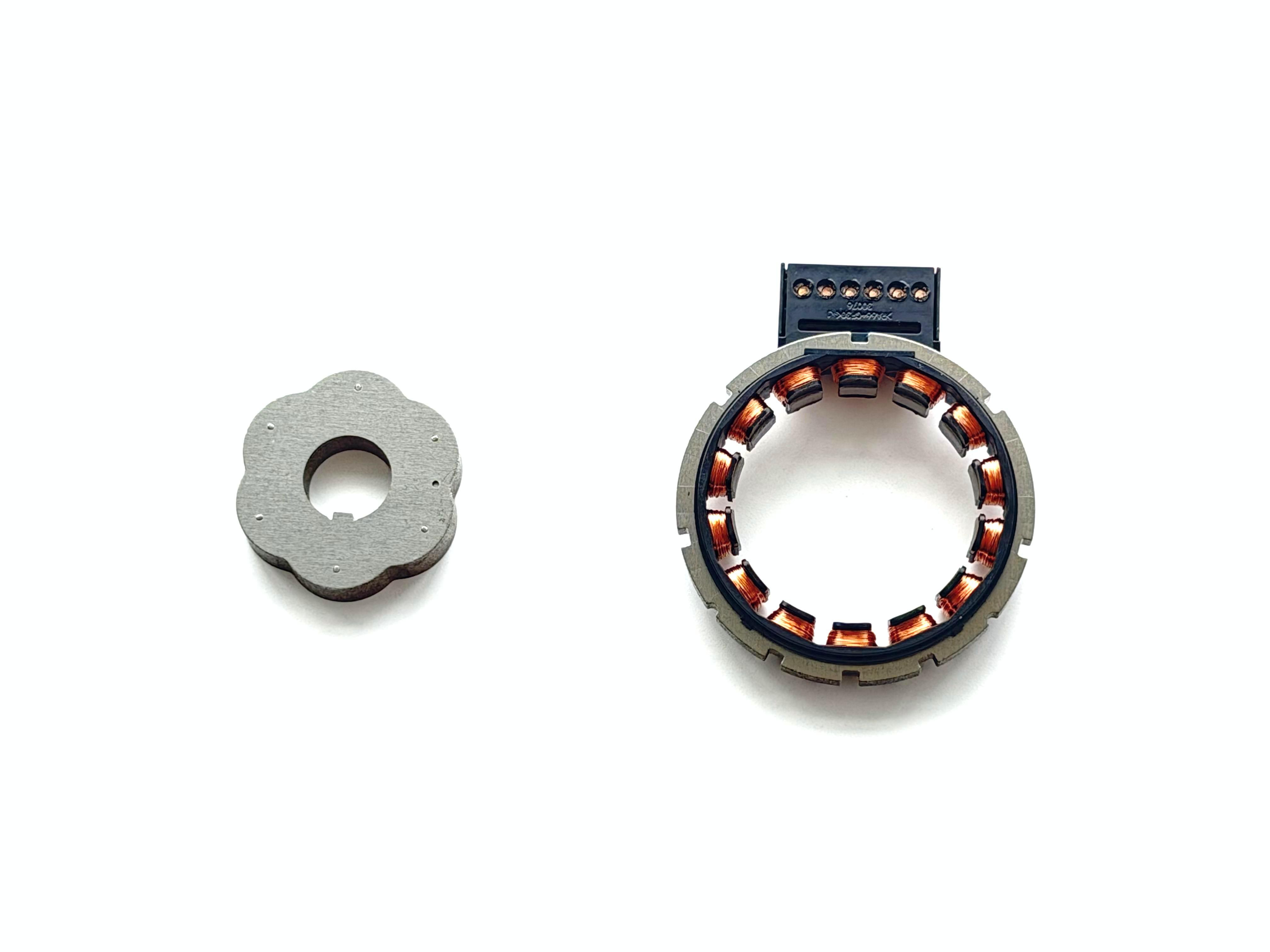

In the drive motor of an electric vehicle, there is an unassuming yet critically important core component – the resolver (short for rotary transformer). It is responsible for real-time detection of the motor rotor’s position and speed, precisely converting mechanical angular displacement into electrical signals, which provide the basis for the electronic control system to precisely regulate motor power. In short, without a resolver, the drive motor of an EV cannot operate efficiently and smoothly.

So, what exactly determines the price of this key component? Why do quotations vary so widely among different manufacturers and models? This article breaks down the pricing logic of resolver sensors.

I. Product Type and Dimensional Specifications: The Core Pricing Benchmark

Resolver sensors are not a "one-size-fits-all" product. Different vehicle models and motors with varying power levels impose different requirements on resolver size, accuracy, pole pairs, and more.

Based on mainstream market classifications, resolvers are available in several size series: 37mm, 52mm, 59mm, 66mm, 89mm, 116mm, etc. Price differences across these specifications are significant. Taking publicly available data from a leading resolver manufacturer as an example:

• 89 series (for mid-size passenger EVs): average unit price in H1 2023 – approximately RMB 72/unit

• 37 series (for small-to-mid-size passenger EVs): average unit price in the same period – approximately RMB 35/unit

• 52 series (for small-to-mid-size passenger EVs): average unit price – approximately RMB 50/unit

• Large-diameter series (for large passenger EVs / commercial vehicles): average unit price up to RMB 172/unit

The price of large-size products is nearly five times that of small-size ones. The core reasons are: larger dimensions require more material, and the machining difficulty and precision requirements are also higher. Therefore, vehicle class and motor power form the first major threshold affecting resolver quotations.

II. Production Volume and Capacity Utilisation: Economies of Scale Determine the Cost Floor

Resolver production exhibits clear economies of scale. The higher the output, the lower the fixed costs (equipment depreciation, plant rent, R&D amortisation, etc.) allocated per unit.

Corporate financial reports show that as production capacity and order volumes increase, the unit cost of wound-type resolvers declines notably. Conversely, if a production line is under-utilised, the high fixed costs spread over fewer products naturally keep unit prices high.

This also explains why, against the backdrop of rapidly rising EV penetration, resolver unit prices have continued to decrease – mass orders dilute the per-unit cost, leaving room for price reductions.

III. Localisation: From Import Monopoly to Price Restructuring

A few years ago, the domestic EV resolver market was firmly dominated by Japanese companies, with unit prices exceeding RMB 400. This not only raised vehicle costs but also made the supply chain dependent on foreign sources.

With domestic resolver manufacturers such as Shanghai Ying Shuang and Changzhou Hua Xuan achieving technological breakthroughs and industrial-scale production, the market landscape has been completely reshaped. Local substitution has not only broken the price monopoly but also continuously driven down costs through automated manufacturing and material localisation. According to industry statistics, the average annual cost reduction for vehicle resolvers over the past decade has been 10%.

By 2025, the global average selling price of EV resolvers had dropped to about USD 5.6/unit (approximately RMB 40), with a gross margin of around 48%. From RMB 400 to RMB 40, localisation has been the biggest driver of this price restructuring.

IV. Raw Material Costs: The "Pass-Through Effect" of Upstream Prices

The upstream raw materials for resolvers mainly include iron cores, silicon steel sheets, copper, aluminium, insulating materials, magnet wire, wiring harnesses, plastic pellets, etc.

Price fluctuations of these basic materials are directly passed through to resolver production costs. For example, a rise in copper prices increases the cost of magnet wire and windings; fluctuations in rare-earth magnetic material prices affect the magnetic circuit components of reluctance-type resolvers. In addition, different process routes (wound-type vs. reluctance-type) have varying dependencies on materials, leading to different cost structures.

V. Manufacturing Processes and Precision Grades: You Get What You Pay For

Resolver production involves multiple high-precision steps, including machining, winding, assembly, and testing. Higher precision and more complex processes naturally incur higher costs.

For instance, wound-type resolvers typically require a machining step, where direct materials and the allocated labour and manufacturing overhead significantly push up the unit cost. Moreover, as drive motors move towards higher speed and higher precision, the performance requirements for resolvers also rise, and quotations for high-end products naturally follow suit.

Market Snapshot: A Rapidly Growing Sector

In 2026, the global automotive resolver market is expected to reach USD 398 million, and by 2033 it is projected to grow to USD 964 million, with a compound annual growth rate of 13.48%. Global production of EV resolvers reached 42.2 million units in 2025.

The core growth driver comes from electric vehicles: each EV is equipped with an average of 2-3 resolvers, whereas a traditional internal-combustion vehicle needs only one. The market space is expanding rapidly.

VI. Production Capacity Deployment: SDM’s 300,000-Unit Resolver Production Line

Amid the rapid expansion of domestic resolver capacity, SDM stands out as a noteworthy new force.

SDM has built a specialised resolver production line with an annual capacity of 300,000 units. This capacity scale is already considerable in the current domestic resolver manufacturing landscape – an annual output of 300,000 units means it can stably support the matching needs of several hundred thousand EVs. The complete staffing from line engineers to quality inspectors also reflects that the line has entered a standardised and normalised operation phase.

As a preferred supplier to Tesla and other Fortune Global 500 companies, SDM started from magnetic materials and has extended upstream to the complete manufacture of resolver sensors, forming a one-stop, full-chain manufacturing capability covering "magnetic materials + motor components + resolver systems". Against the macro backdrop of accelerating local substitution of resolvers and the continued expansion of the EV market, the strategic value of this 300,000-unit production line is self-evident – it not only provides customers with a stable and reliable resolver supply guarantee but also further optimises resolver costs through economies of scale.

Summary

The quotation logic for resolver sensors can be summarised as: "Type sets the baseline, scale reduces cost, localisation compresses price, materials pass through fluctuations, and processes define the upper limit." For procurement professionals, understanding these five dimensions allows for a more accurate assessment of whether a quotation is reasonable, avoiding a "price-only" approach that neglects product suitability and supply-chain reliability.

With the continued release of domestic resolver capacity and ongoing technological iteration, we have every reason to believe that the cost-performance ratio of resolver sensors will keep improving – and in the end, every EV consumer will be the ultimate beneficiary.
