In today's rapidly growing new energy vehicle industry, the performance of the electric drive system has become a core indicator of overall vehicle quality. The resolver sensor – the "perceptual organ" within the motor control system – plays an indispensable role. Its full name is resolver, a precision measurement device that converts rotational angle and speed into electrical signals via electromagnetic induction. Its core mission is singular: to accurately capture the real-time rotor position, rotational speed, and direction of the electric motor, transmitting the signals to the controller for precise motor control via software algorithms.
Different vehicle segments have significantly different requirements for resolver sensors. Economy EVs prioritize cost, high-performance EVs demand extreme accuracy and thermal tolerance, while commercial vehicles require higher reliability and vibration resistance. Selecting the right resolver sensor not only affects the performance of the motor control system but also directly impacts vehicle quality, safety, and cost effectiveness.
1. Economy EVs: High Cost-Effectiveness for Mainstream Accuracy
For everyday commuter battery electric and hybrid vehicles, cost control is a core design principle. In this segment, the selection strategy for resolver sensors is clear – maximize cost advantage while meeting mainstream control accuracy requirements.
Current mainstream resolver sensors typically achieve accuracy levels between ±0.1° and ±0.5°, which is sufficient for vector control of economy EVs under daily driving conditions. More specifically, an accuracy of 10 arc-minutes (approx. 0.1667°) is considered the "baseline" for economy vehicles in the industry, while some high-end sensors can reach 10 arc-minutes or even higher – roughly a 25% improvement over the industry average.
In terms of structure, two-pole resolver sensors, with their simple design and lower cost, are well-suited for mass production of economy vehicles. Their streamlined winding design and mature manufacturing processes significantly reduce per-vehicle sensor costs compared to high-accuracy multi-pole models. Looking at long-term trends, the average selling price of automotive resolver sensors has fallen by about 10% annually over the past decade, driven mainly by automation efficiency gains (approx. 20% annual improvement in production) and domestic substitution of materials (e.g., silicon steel sheets shifting from Japanese premium materials to domestic brands like Baosteel and Shougang). For economy EV manufacturers, this means they can achieve a more competitive BOM without sacrificing core performance.
The positioning of high-performance EVs leaves no room for compromise in the electric drive system. These vehicles typically feature higher maximum speeds, stronger dynamic acceleration response, and more demanding thermal management conditions, meaning the resolver sensor mounted inside the motor must withstand extreme challenges.
In terms of accuracy, high-performance models typically require angular error below 0.1°, and some models pursuing the fastest response demand ±5 arc-minutes (approx. ±0.083°) or even higher resolution. A high-accuracy resolver ensures excellent dynamic response and positioning accuracy of the servo motor in closed-loop control – directly affecting the motor's command-following performance during high-performance scenarios such as launch control or cornering on a track. In addition, operating temperature range is a key metric. Some top-tier domestic products already cover a wide temperature range from -40°C to 165°C, effectively adapting to the high-temperature conditions generated by sustained high-power output of high-performance motors, as well as cold-start requirements in frigid regions. In terms of environmental adaptability, resolver sensors typically cover -40°C to +155°C, with some military-grade versions extending to -65°C to +200°C. Multi-pole resolver sensors improve angular resolution by increasing the number of pole pairs – for example, a 10-pole-pair design can achieve mechanical angle accuracy of 0.036°, making them particularly outstanding in high-dynamic-response applications.
3. Commercial Vehicles / Heavy-Duty Scenarios: A "Tough Battle" for Reliability and Vibration Resistance
Commercial vehicles, heavy trucks, construction machinery, and electric forklifts operate in some of the harshest environments for electric drive systems. These vehicles are subject to prolonged exposure to high dust, high humidity, and high-intensity vibration, placing stringent demands on resolver sensor reliability and durability.
Vibration tolerance is especially critical for commercial vehicles. While standard passenger-car resolvers may pass vibration tests of around 20 G, commercial and heavy-duty applications require sensors that can withstand far higher continuous vibration and instantaneous shock. Thanks to their all-metal construction and lack of built-in optical or electronic components, resolver sensors inherently offer excellent vibration and shock resistance. From materials to structural design, commercial-grade resolvers must adopt more robust silicon steel stacking processes and more compact rotor structures to ensure no signal drift or coil breakage under long-term high-vibration conditions. In terms of operating environment, commercial vehicles also face combined challenges of wide temperature, oil contamination, and electromagnetic interference. With no built-on electronic components, resolver sensors operate stably in oily environments and tolerate high-level EMI – something that optical encoders or some magnetic encoders struggle to achieve. Furthermore, ingress protection ratings such as IP67 or IP69 should be considered essential for commercial applications to cope with water immersion and muddy conditions.
4. SDM: The 52 EV Resolver Series – Precisely Meeting Diverse Needs

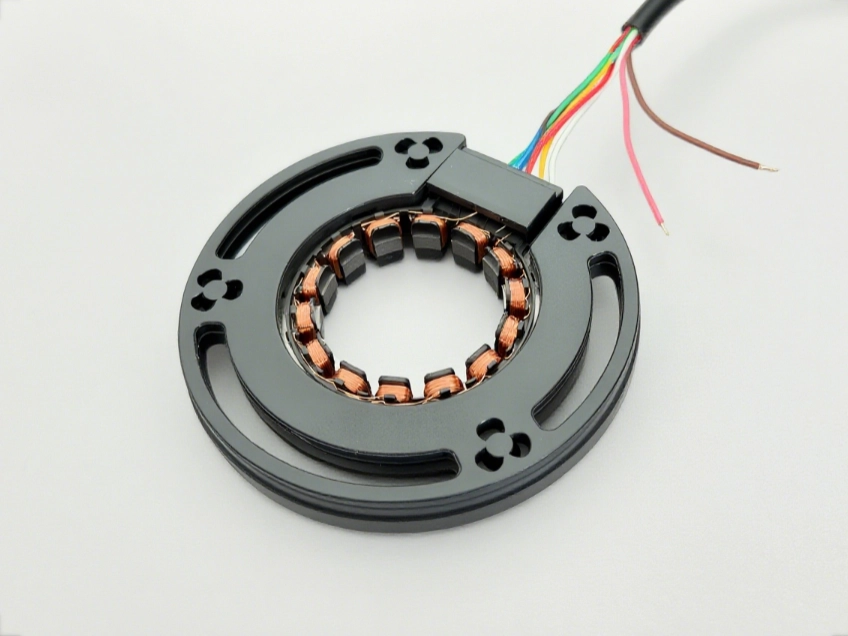

In the field of EV resolver sensors, SDM has leveraged its deep technical expertise and keen market insight to launch the 52 Series resolver sensors, designed specifically for different customer applications. Built on a mature 52 mm outer-diameter platform, this product line flexibly fits various motor and e-drive system integration requirements.
The 52 Series resolver covers three customized product forms, each targeting different use cases and customer needs:
· Cost-effective version: Tailored for economy EVs and high-volume production scenarios. This version uses a more streamlined bill of materials and automated assembly processes to significantly reduce unit manufacturing cost. Ideal for cost-sensitive mass procurement projects, it maintains mainstream electrical accuracy and operating temperature range while effectively supporting overall vehicle BOM optimization.
· Connector (plug-in) version: This version features a direct plug-in connector for signal output. During installation, the wiring harness connector simply plugs into the resolver connector – no soldering required. This design greatly simplifies the motor assembly line process, reduces soldering costs and human error, and improves consistency and maintainability. It is especially suitable for high-volume production vehicle programs.
· Cable version: This version comes with a custom lead wire, allowing the harness length and terminal type to be tailored to different motor structures and overall layout requirements. It is widely used in traction motors, BSG/ISG motors, range extenders, and other e-drive systems, meeting various vehicle requirements for different resolver output wiring styles.
Whether the project demands the ultimate in cost-effective mass production, or higher assembly efficiency and reliability, SDM's 52 Series resolver family – with its flexible form factors, reliable performance, and stable supply – provides NEV customers with a tailored sensor solution that truly meets their practical needs.
