1. Excessive Vibration – The “Invisible Killer” of Magnetic Bearing / High-Speed Motor Rotors
Magnetic bearing / high-speed motor rotors are increasingly replacing traditional mechanical-bearing motors in high-end equipment because of their contact-free operation, no friction, and high efficiency. However, when rotor vibration exceeds acceptable limits, the consequences can range from reduced accuracy and efficiency to rotor instability, bearing damage, or even complete system failure.
The causes of excessive vibration are numerous – abnormal magnetic-bearing control, loss of rotor dynamic balance, or distorted sensor signals. When a vibration alarm sounds, the worst approach is to tackle everything at once. The correct method is to follow a logical sequence: magnetic bearings → dynamic balancing → sensors, checking each stage one by one to pinpoint the root cause.
2. First Stop: Magnetic Bearings – What’s Wrong with the “Invisible Hands” That Levitate the Rotor?
Stable levitation of the rotor depends on the magnetic-bearing control system, which adjusts electromagnetic forces in real time. If the magnetic-bearing system malfunctions, the rotor will wobble violently, like a gyroscope losing its balance.
Key inspection points:
2.1 Check levitation clearance and bearing power consumption
The levitation clearance is the most direct indicator of system health. If the clearance deviates from the design value, or if bearing power consumption exceeds the factory baseline by more than 15%, the bearing system is likely abnormal. In this case, inspect the magnetic-bearing coils for short circuits and verify that the power amplifier is working correctly.
2.2 Check controller parameters and external interference
Low-frequency vibrations of magnetic bearing / high-speed motor rotors are often governed by the inherent frequency of the closed-loop control system. Improper PID settings or resonance excited by noise can cause speed-independent abnormal vibrations. Re-tune the controller parameters and check for external electromagnetic interference.
2.3 Check mechanical assembly issues
Poor contact at the interface between the impeller and the rotor introduces additional contact stiffness, reduces system modal damping, and can excite high-frequency rotor vibrations. Also, abnormal bearing clearance is a common trigger.
3. Second Stop: Dynamic Balancing – Is the Rotor’s “Weight” Evenly Distributed?
If the magnetic-bearing system checks out, the next suspect is rotor dynamic balance.
Why is dynamic balance so critical?
In rotating machinery, the centrifugal force caused by mass imbalance is proportional to the square of the rotational speed. The higher the speed, the greater the unbalanced excitation and the more severe the vibration. Magnetic bearing / high-speed motor rotors often operate at tens of thousands of revolutions per minute or even higher – even a tiny imbalance can be amplified into violent vibration.
Key inspection points:
3.1 Check impeller dust accumulation and wear
The most common on-site cause of balance loss is dust build-up or wear on the impeller surface. Deposited dust changes the rotor’s mass distribution and destroys its original balance. Open the housing, clean the impeller, and if wear is severe, return the rotor to the factory for re-balancing.
Bumps during transport or installation, or friction between the impeller and the housing during operation, can cause local deformation or material loss, again destroying dynamic balance.
3.3 Re-balance if necessary
If the above inspections are normal but vibration persists, perform dynamic balance correction. For magnetic bearing rotors, online balancing methods are available – based on zero-displacement control, the unbalance can be identified and corrected while the rotor is running.
4. Third Stop: Sensors – Can the Magnetic System’s “Eyes” Still See Clearly?
Displacement sensors are the “eyes” of the magnetic-bearing control system, detecting rotor position in real time and feeding back to the controller. If a sensor fails, the control system will “misread” the position and issue incorrect commands, actually worsening the vibration.
Key inspection points:
4.1 Check sensor probe gap voltage
This is the most direct check. Use an oscilloscope to measure the gap voltage of each displacement sensor probe. The standard value is typically 8.0 ± 0.5 V. Deviation indicates improper probe mounting or a faulty probe.
4.2 Check sensor contamination and looseness
Displacement sensors (e.g., eddy-current or Hall sensors) can suffer signal drift or distortion due to dust, oil contamination, or loose mounting. On-site, verify that the probe faces are clean and securely fixed.
4.3 Check sensor signal consistency
For systems using differential displacement sensors, when different sensors fail, the phase difference between the sensor difference signal and the controller output signal at the fault frequency is 180°. Analysing this feature can precisely identify which sensor is faulty.
4.4 Check sensor misalignment
Misalignment between the sensor centre and the magnetic-bearing centre directly affects vibration control performance and, in severe cases, can destabilise the control system.
5. Summary of Troubleshooting Procedure
When a magnetic bearing / high-speed motor rotor exhibits excessive vibration, follow this sequence:
Step | Check Item | Core Contents |
Step 1 | Magnetic Bearings | Levitation clearance, bearing power consumption, controller parameters, coil condition |
Step 2 | Dynamic Balance | Impeller dust/wear, rotor impact/deformation, re-balancing |
Step 3 | Sensors | Probe gap voltage, contamination/looseness, signal consistency, installation alignment |
This “magnetic bearings → dynamic balance → sensors” logic moves from the control system to the mechanical body and finally to the measurement chain – from internal software to external hardware. It helps on site engineers quickly identify the vibration source and avoids unnecessary disassembly that could cause secondary damage.

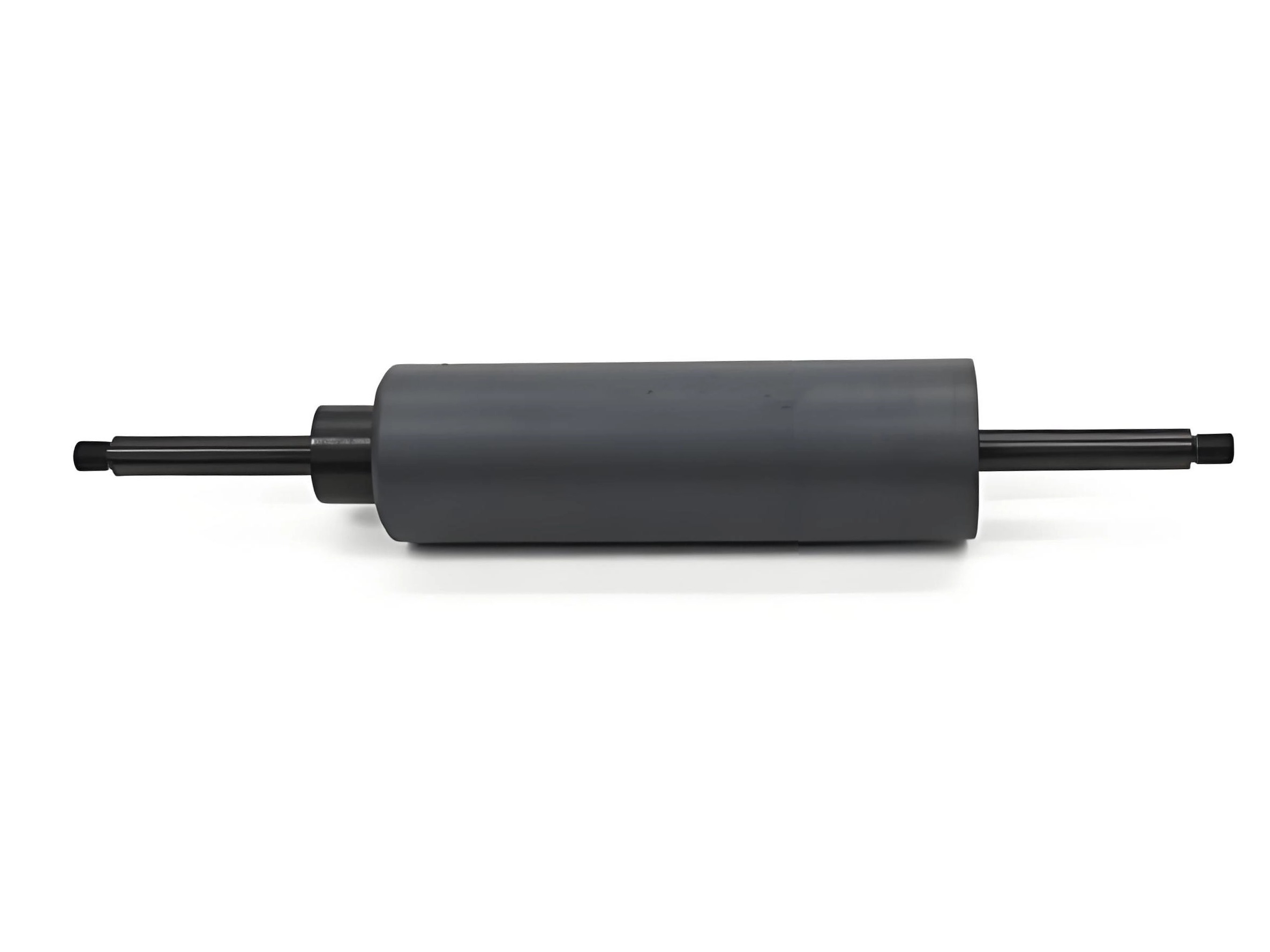

6. From Raw Magnet to Finished Product: SDM’s Full-Process Delivery Capability for Magnetic Bearing / High-Speed Motor Rotors
Troubleshooting vibration ultimately depends on high-quality rotor manufacturing. SDM (Hangzhou Shengshideng Magnetic Materials Co., Ltd.) – a national-level high-tech enterprise specialising in magnets and magnetic solutions – possesses complete in-house capabilities from raw materials to finished products in the field of magnetic-bearing motor rotors.
In terms of product delivery, SDM has achieved full-chain batch production of magnetic bearing / high-speed motor rotors at its Cijuli Factory, with the following sequential process:
Magnet sintering → Shaft machining → Assembly → Grinding → Shrink-fitting or carbon-fibre winding → Dynamic balancing → Magnetisation and delivery
Starting from magnet sintering, through precise shaft machining, systematic assembly, high-precision grinding, then shrink-fitting or carbon-fibre reinforcement, and finally precision dynamic balancing and magnetisation – every step is completed in-house at the factory, ensuring full quality control from material to finished product.
SDM holds multiple certifications including IATF 16949, ISO 9001, ISO 14001, and ISO 45001, and its products meet RoHS, REACH, and SGS testing requirements.
For vibration issues in magnetic bearing / high-speed motor rotors, “30% depends on troubleshooting, 70% depends on manufacturing quality.” A rotor that is fully controlled from magnet to finished product is the foundation of long-term reliable operation. SDM is leveraging its entire industrial chain to ensure the dependable performance of magnetic bearing / high-speed motors.
