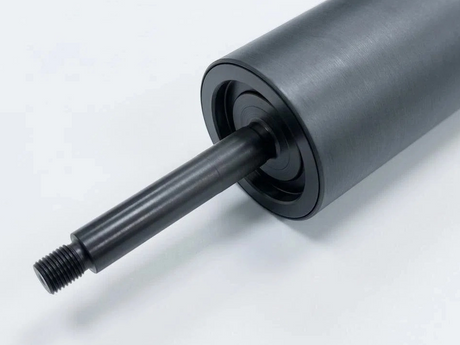

Amidst the intricate gears of modern industry, one technology is silently spearheading a revolution in energy efficiency—the magnetic levitation motor. Leveraging the disruptive advantages of contactless operation, zero friction, and the elimination of lubrication, it shines in applications ranging from blowers and compressors to flywheel energy storage. The soul of this system, the component that makes it all possible, is the rotor—the shaft that spins suspended in mid-air by powerful magnetic fields. How does this invisible "heart" achieve stable, high-speed levitation? This article will decode the core technologies behind it in an accessible yet detailed manner.
1. Precision Control Without Eyes: Sensorless Technology
To precisely levitate a rotor at high speeds, the first step is to "see" its position in real-time. In traditional setups, this typically requires installing between 5 to 10 non-contact displacement sensors. However, physical sensors not only increase the axial length of the system but are also difficult to install at ultra-high speeds and may even compromise reliability.
To overcome this, engineers have pioneered Sensorless Vector Control Technology. Instead of relying on physical probes, this approach uses sophisticated mathematical algorithms to estimate the rotor's real-time state based on current and voltage signals.
This is akin to accurately judging a car's speed solely by the hum of the engine and subtle body vibrations. It places extreme demands on algorithm robustness, adaptability, and response speed. Today, advanced algorithms such as Model Reference Adaptive System (MRAS) and Sliding Mode Observer (SMO) have emerged, allowing the rotor to be securely locked in place by a "virtual electric eye" even at tens of thousands of RPM, ensuring stable suspension.
2. Electromagnetic "Purification" at High Speed: Harmonic Suppression and New Materials
When the rotor reaches speeds of tens of thousands of RPM or higher, the motor's current frequency becomes extremely high, and the electromagnetic environment grows highly complex. The switching frequency and dead-time effects of the drive generate significant harmful current harmonics. These harmonics not only cause torque ripple but also penetrate the rotor directly, inducing substantial eddy current losses that heat the permanent magnets and can lead to irreversible demagnetization.
Drive-Level "Purification": SiC and GaN
Addressing this issue begins with advancements in drive technology. Wide-bandgap semiconductor devices like Silicon Carbide (SiC) and Gallium Nitride (GaN) are replacing traditional silicon-based IGBTs. They offer faster switching speeds, lower switching losses, and shorter turn-on/turn-off times, thereby drastically reducing dead time. This cleanses the current waveform at the source and reduces rotor heating.
Material-Level "Defense": Carbon Fiber Sleeves
Concurrently, the materials used in the rotor itself are evolving. To prevent metallic sleeves from inducing losses under high-frequency harmonic currents, engineers are increasingly using high-strength, low-conductivity Carbon Fiber Composites instead of non-magnetic steel to encase the permanent magnets. This acts like a "protective armor" for the rotor—capable of withstanding immense centrifugal forces while insulating against eddy current heat—effectively safeguarding the magnets' safety and longevity at high speeds.
3. Taming the Invisible Vibration: Rotor Dynamics and the Intelligent "Brain"
As rotational speed increases, the rotor faces a physical "hurdle"—the Critical Speed. When the speed approaches the rotor's natural bending frequency, vibration amplitude amplifies dramatically. This can lead to system instability at best and catastrophic collision at worst.
Unlike traditional mechanical bearings, Active Magnetic Bearings (AMB) possess the unique ability to adjust stiffness and damping in real-time, making them the ideal solution for taming flexible rotor vibrations. By establishing precise rotor dynamics models and employing powerful control algorithms like PID or Active Disturbance Rejection Control, the system can monitor the rotor's vibration state in real-time and apply counteractive electromagnetic forces.
Some R&D teams have equipped the rotating components of magnetic bearings with an "intelligent brain," utilizing auto-balancing technology. This not only ensures stable rotor levitation but also eliminates the need for the lubrication systems required by traditional bearings, achieving true 100% oil-free operation.
4. The Thermal Battle at Extreme Speeds: Efficient Cooling Technology
Even with optimal control algorithms and advanced materials, rotors at extreme speeds still face the physical limit of concentrated internal heating per unit volume. For ultra-high-speed motors, thermal management is directly tied to system reliability.
The mainstream solution currently involves guiding thermal design through multi-physics (electromagnetic-thermal-fluid) coupling analysis. In practice, the industry employs various efficient thermal management schemes. Some high-end drives utilize direct refrigerant cooling combined with active temperature control to precisely manage power device temperatures, significantly extending equipment lifespan. Additionally, the use of heat pipes and phase-change materials are common methods for efficient heat dissipation.
5. Bearing Fruit: Industrial Application Landscape of the Rotor
The cutting-edge technologies surrounding the rotor, described above, are generating substantial economic and environmental benefits across various industrial scenarios:
Magnetic Levitation Air Compressors: Certain 8-bar magnetic levitation centrifugal air compressors, utilizing contactless magnetic bearing technology, deliver 100% oil-free pure compressed air. A single unit can save over 700,000 yuan in annual electricity costs, perfectly suiting high-end industries like precision electronics, semiconductors, and biopharmaceuticals.
Flywheel Energy Storage: Flywheel energy storage systems based on maglev rotors use a vacuum environment to further reduce windage losses, emerging as strong contenders in grid frequency regulation and uninterruptible power supplies for data centers.
Blowers and Vacuum Pumps: Widely used in sectors like wastewater treatment and pulp & paper, these systems help significantly reduce operating costs in high-energy-consumption scenarios.
According to statistics, the market size of China's magnetic bearingless motor industry reached 394 million yuan in 2024. Leading domestic manufacturers have deployed over 10,000 magnetic levitation high-speed rotating units worldwide, achieving annual electricity savings exceeding 5.5 billion kWh and annual carbon emission reductions of over 5.5 million tons.
6. The Future is Now: The Evolutionary Path of Rotor Technology
Looking ahead, magnetic levitation rotor technology continues to evolve toward higher speeds, greater power density, and enhanced intelligence. The advantages of Carbon Fiber Composite Sleeves in reducing losses will be further unleashed, driving rotors toward lighter weight and ultra-high speeds. The proliferation of SiC and GaN devices will push drive switching frequencies even higher while shrinking system volume. Multi-physics coupling simulation tools will empower engineers to design thermal management systems with greater precision. Furthermore, national key R&D initiatives like the "Key Technologies for High-Speed, High-Load Magnetic Bearings" project will accelerate the transition of these frontier technologies from the laboratory to industrial application.
The technological breakthroughs in magnetic levitation motor rotors represent a profound fusion of precision control, materials science, power electronics, and mechanical dynamics. As core technologies continue to advance, this invisible "heart" will relentlessly drive China's high-end equipment manufacturing industry beyond the physical limits of traditional bearings, providing robust momentum for the sustainable development of global green industry.
