In the field of industrial automation and motion control, the trade-off between precision and reliability is a constant challenge.

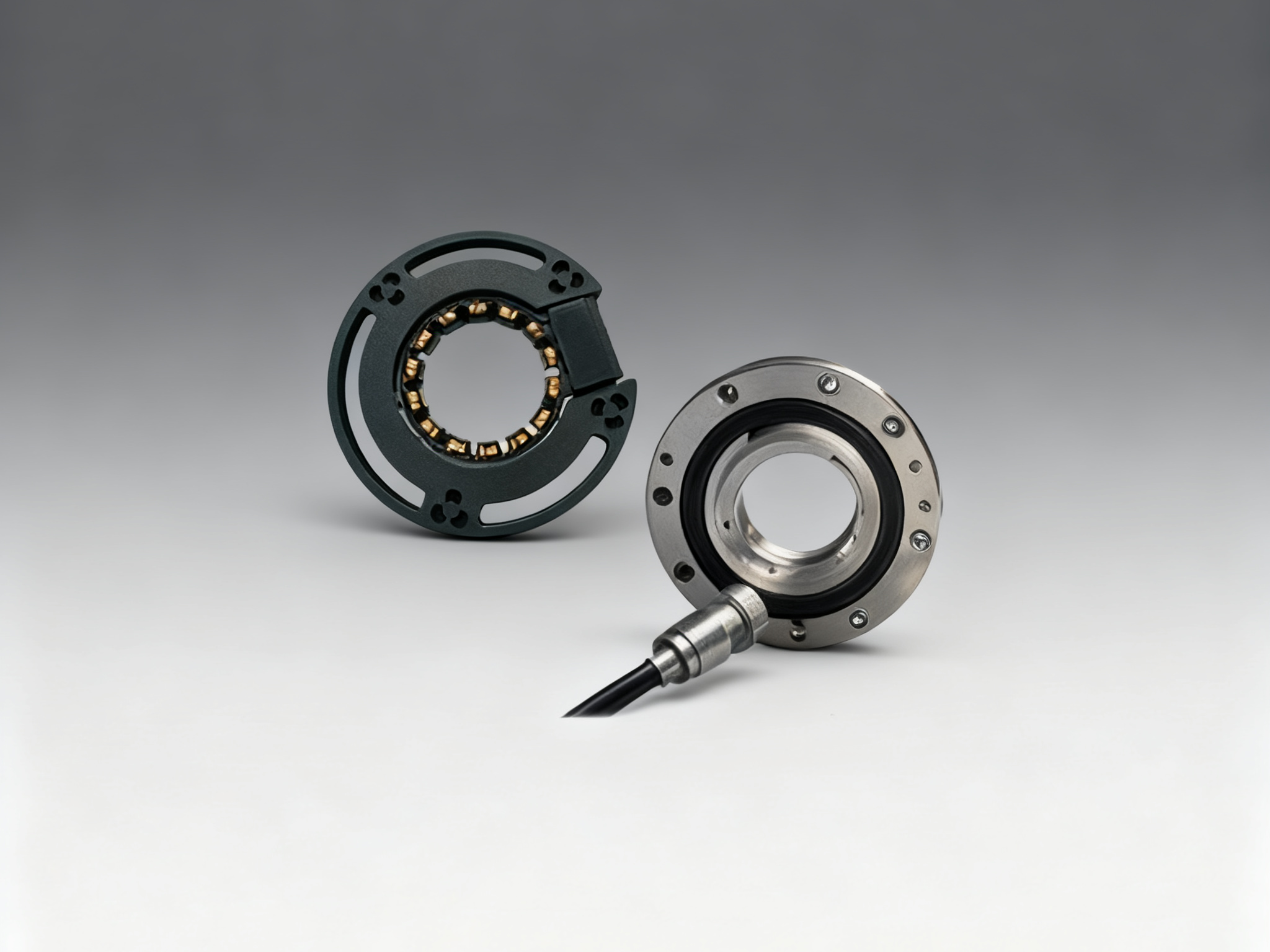

In modern industrial automation and motion control, precise position feedback is crucial for ensuring high-performance system operation. As core position detection components, Variable Reluctance Resolvers and Magnetic Encoders each have their own merits, posing a difficult choice for engineers during selection.
The Variable Reluctance Resolver is renowned for its exceptional reliability and strong tolerance to harsh environments. Conversely, the Magnetic Encoder is widely used in numerous industrial scenarios due to its relatively high cost-effectiveness and sufficient accuracy.
So, how should we make the most suitable choice when faced with specific application requirements?
01 Working Principle: Fundamental Differences Define Application Boundaries
To make the correct selection decision, one must first understand the inherent technical differences between the two.
The Variable Reluctance Resolver (often abbreviated as resolver) operates based on the principle of electromagnetic induction. It utilizes the salient pole effect of the rotor's magnetic poles, causing the mutual inductance between the excitation winding and the output windings to vary with the rotor position.
Simply put, when an AC current is applied to the excitation winding, the output windings induce voltage signals that have a sinusoidal and cosine functional relationship with the rotor angle.
This non-contact electromagnetic induction method gives it a simple and robust structure, containing no electronic components; it is essentially an analog sensor.
The Magnetic Encoder, however, relies on magnetic field sensing technology. It uses a magnetic code wheel (magnetic ring) instead of the optical disk found in optical encoders, with the code wheel containing spaced magnetic poles.
As the code wheel rotates, an array of Hall effect sensors or magnetoresistive sensors detects the changes in the magnetic field. The generated signals are then processed and converted into position information.
Unlike resolvers, magnetic encoders process digital signals from the outset, outputting square wave pulses or absolute position data.
02 Performance Comparison: A Comprehensive Showdown of Key Metrics
In practical applications, the performance differences between Variable Reluctance Resolvers and Magnetic Encoders directly affect their suitability for specific scenarios. The following is a comparison of their core performance parameters:
Performance Metric | Variable Reluctance Resolver | Magnetic Encoder |
Environmental Adaptability | Excellent, resistant to extreme temperatures (-55°C to 155°C), vibration, dust, oil | Strong, resistant to vibration, contamination, typical operating temp. -40°C to 120°C |
Noise Immunity | Excellent, analog signals offer strong resistance to EMI | Moderate, can be affected by motor electromagnetic interference |
Accuracy & Resolution | Typical accuracy ±12 arcminutes (~0.2°), can be improved with multi-speed designs | Accuracy up to ~±0.3°, resolution typically lower than optical encoders |
Speed Range | Very high speed, up to 60,000 rpm | High speed, typical values 20,000 - 30,000 rpm |
Lifespan & Maintenance | Very long, non-contact design, long lifespan, low maintenance cost | Long, non-contact design, but electronic components may age |
From the comparison, it is evident that resolvers hold an irreplaceable advantage in extreme environments and applications requiring ultra-high reliability, while magnetic encoders offer good cost-effectiveness in general industrial environments.
03 Application Scenarios: A Selection Guide for Different Environments
Understanding the performance differences is one thing; how does one translate theory into practice? Below are specific selection recommendations for the two technologies in different scenarios:
Preferred Scenarios for Variable Reluctance Resolvers
· Extreme Environment Applications: In fields such as aerospace, automotive motor control (especially for new energy vehicle traction motors), resolvers are the reliable choice, capable of withstanding temperature ranges from -55°C to 155°C and strong vibrations.
· High-Speed Applications: When rotational speeds are extremely high (e.g., exceeding 30,000 rpm), resolvers provide stable and reliable position feedback, suitable for high-speed spindles, turbo machinery, etc.
· Safety-Critical Systems: In systems like electric power steering, brake-by-wire, or valve control, the high reliability and fail-safe characteristics of resolvers are primary considerations.
Advantageous Scenarios for Magnetic Encoders
· General Industrial Automation: In environments like packaging, paper processing, metalworking, and printing, the magnetic encoder's ability to resist dust and oil makes it a cost-effective option.
· Space-Constrained Applications: Magnetic encoders have a compact structure; for example, the RM36 series has a diameter of only 36mm, making it suitable for space-sensitive applications like robot joints and medical equipment.
· Large Shaft Applications: Flexible magnetic strip encoders can be used on large shafts with diameters up to 3185mm. This design allows installation without disassembling the equipment, making it particularly suitable for heavy-duty equipment like wind turbines, hydroelectric generators, paper machinery, and crane systems.
· Cost-Sensitive Projects: In situations requiring a balance between performance and budget, magnetic encoders offer a good compromise, meeting the basic requirements of industrial environments while controlling the total system cost.
04 Selection Decision: Systematic Consideration of Five Key Factors
When faced with a specific project, how should engineers systematically approach the selection decision? Here are five key factors to consider comprehensively:
· Environmental Condition Assessment: First, evaluate the operating environment's temperature range, vibration intensity, type of contaminants, and level of electromagnetic interference. Prioritize resolvers for extreme environments; consider magnetic encoders for general industrial environments.
· Accuracy and Speed Requirements: Define the system's accuracy needs and expected operating speed. Magnetic encoders can be chosen for high-precision, low-speed applications, whereas ultra-high-speed applications lean towards resolvers.
· System Integration Complexity: Consider the interface difficulty between the sensor and the overall system. Magnetic encoders typically offer plug-and-play digital interfaces, while resolvers require dedicated RDC chips or DSPs for signal demodulation.
· Lifecycle Cost: Beyond the initial procurement cost, also consider installation, maintenance, and potential downtime costs. Although resolvers may have a higher initial cost, they might offer greater value in reducing downtime and extending maintenance intervals.
· Supply Chain & Support: Evaluate the supplier's local technical support capability, delivery lead times, and product traceability. Ensure the selected technology has reliable supply chain support.
In the world of industrial automation, there is no one-size-fits-all solution. As one seasoned engineer pointed out: "Selection is not merely a technical comparison, but a value trade-off based on the specific application scenario." In extreme environments with high temperatures, strong vibration, and significant electromagnetic interference, the Variable Reluctance Resolver becomes the undeniable choice due to its robust reliability. In general industrial environments, space-constrained, or cost-sensitive applications, the Magnetic Encoder demonstrates unique value with sufficient accuracy, good environmental adaptability, and high cost-effectiveness.
Future technological developments will continue to advance both technologies—resolvers are improving resolution through multi-speed designs and digital conversion technology, while magnetic encoders continuously enhance their accuracy and noise immunity. Only by understanding the basic principles and mastering the selection methodology can one make the wisest choices amidst technological change.
