In the world of precision motors, a protective shell as thin as a cicada's wing yet incredibly sturdy is the key to the smooth operation of high-end equipment.

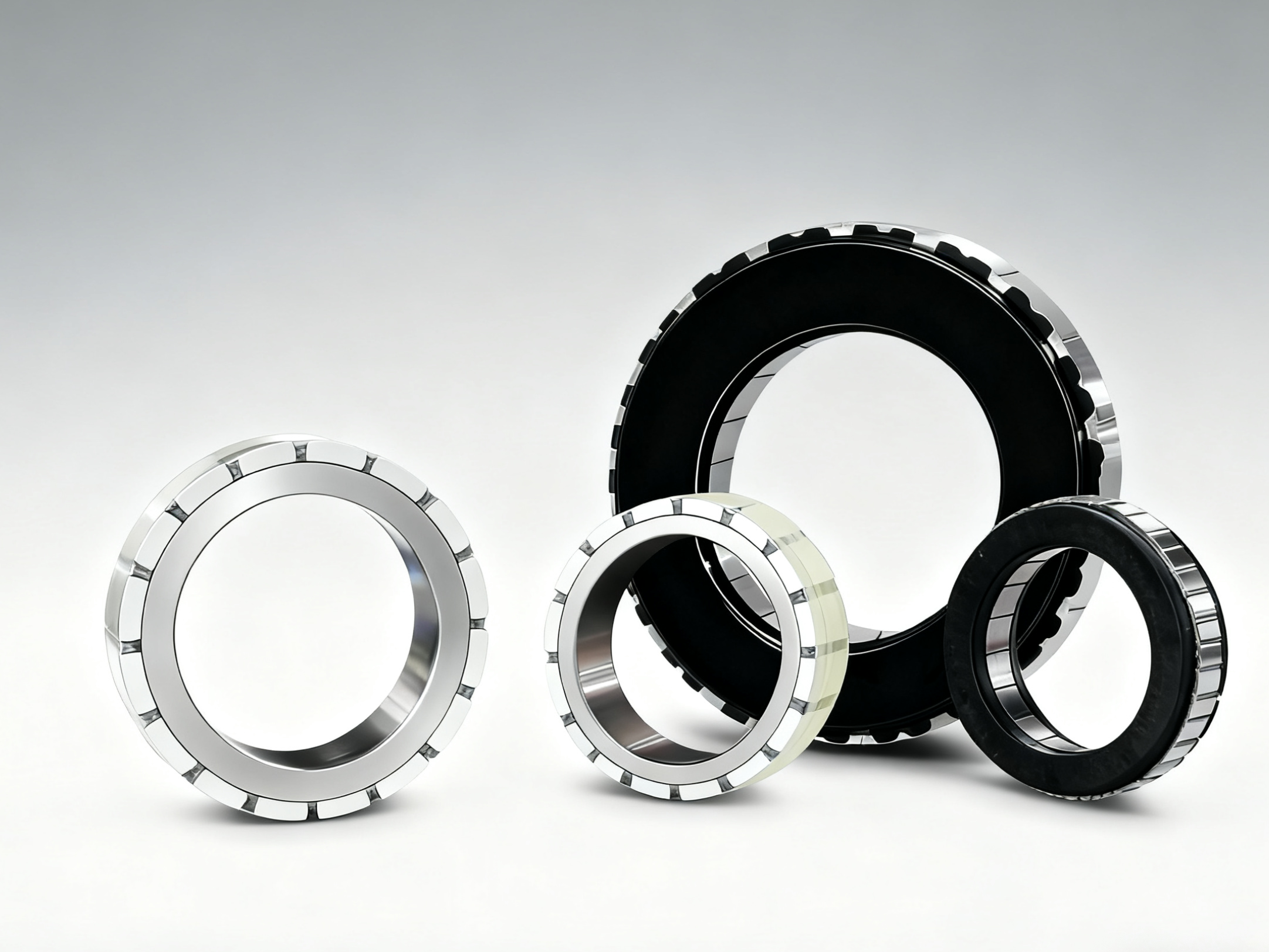

In modern industry and technology, frameless torque motors have become core components in robotics, aerospace, and precision medical equipment. Among these, the rotor protective shell, though inconspicuous, is critical to ensuring the stable operation of the motor.
It must resist the immense centrifugal force generated by high-speed rotation, cope with the material expansion challenges caused by high temperatures, and maintain extreme precision and balance. The production of these thin-walled protective sleeves combines cutting-edge achievements in materials science, precision machining, and simulation technology.
01 Shell Function and Materials: The First Line of Defense for the Rotor
The primary task of the rotor protective shell in a frameless torque motor is to protect the magnets. During high-speed operation, surface-mounted magnets are subjected to significant centrifugal force and are highly prone to detachment, leading to motor failure.
Traditional protection methods involve tightly winding a layer of 0.04-mm-thick non-fiberglass around the outer circumference of the magnets and securing it with adhesive. However, this method has obvious drawbacks—the thickness of the adhesive is difficult to control, and due to gravity, it tends to accumulate downward, easily causing the outer diameter of the rotor to exceed tolerances.
Modern protective shells also serve as heat dissipation media. The heat generated during motor operation must be effectively dissipated through the shell to prevent magnet demagnetization due to high temperatures and ensure stable motor performance.
For material selection, the industry typically uses high-strength, non-magnetic TC4 titanium alloy. This material offers excellent strength-to-weight ratio characteristics, meeting both strength requirements and avoiding interference with the motor's electromagnetic performance.
In some specialized applications, aluminum alloy materials are also used. For example, the protective covers for certain integrated DC brushless limited-angle torque motor rotors are made of aluminum alloy, with thicknesses ranging only from 0.2 to 0.5 mm.
02 Process Head Positioning Technology: Solving the Challenge of Thin-Wall Deformation
As a thin-walled structure, the rotor protective shell is highly susceptible to deformation during machining due to applied forces. In a typical application, the air gap of a frameless motor is generally no more than 1 mm. To ensure normal motor operation, the single-side thickness of the protective sleeve must be controlled to approximately 0.5 mm.
When turning the rotor protective sleeve, the workpiece's rigidity is poor, and the part is prone to deformation under the pressure of the chuck during the turning process, thereby affecting machining accuracy.
Process head positioning technology has emerged to address this. This method applies clamping force to a surface with good rigidity (the process head), and during fine turning, the outer circle and inner hole are completed in a single clamping, ensuring concentricity of the inner and outer circles as well as the roundness of the inner hole.
During machining, a certain machining allowance must be left on the outer circle to ensure the protective sleeve has sufficient strength and to prevent deformation during transportation and storage. This process innovation significantly improves the machining accuracy and yield rate of thin-walled protective shells.
03 Heat Treatment Process: The Key Step to Eliminating Internal Stress
Heat treatment is crucial in the machining of thin-walled protective shells, directly impacting the final accuracy and stability of the product. A typical process flow includes: rough turning → heat treatment → fine turning.
Performing dehydrogenation annealing and stress relief annealing heat treatment before fine turning can remove residual machining stresses and reduce deformation. This step is critical because residual stress can cause the part to gradually deform during subsequent machining and use.
Dehydrogenation annealing also improves the material's toughness, preventing hydrogen embrittlement and ensuring the reliability of the protective shell in high-speed operating environments.
Heat treatment parameters must be carefully designed based on the material type and part dimensions, including heating rate, holding temperature and time, and cooling rate, all of which must be strictly controlled.
04 Rotor Integrated Machining: Ensuring Final Accuracy
The rotor protective sleeve and magnets are bonded together with adhesive. After the adhesive is heated and cured, the outer diameter of the protective sleeve is machined to size using the machining reference of the rotor shaft, ensuring overall concentricity and reducing rotor imbalance.
The complete rotor machining process includes: press-fitting → bonding magnets/protective sleeve → grinding center hole → rough turning outer circle → laser engraving serial number → grinding bearing seat → fine turning outer circle → dynamic balancing calibration.
This integrated machining method ensures the dynamic balancing performance of the rotor assembly, which is particularly important for high-speed applications. Minor imbalances are amplified at high speeds, leading to increased vibration and noise, and even affecting motor lifespan.
The balancing advantages brought by precision machining enable frameless torque motors to be widely used in applications with strict requirements for noise and vibration, such as medical equipment and high-precision industrial robots.
05 Innovative Processes and Materials: Moving Toward Lighter, Thinner, and Stronger
With technological advancements, rotor protective shell production processes are also不断创新. One production process for motor rotor sleeves improves the drawing process by using drawing oil and controlling oil application time and stamping speed, reducing the thickness of the rotor sleeve to approximately 0.3 mm.
This process includes steps such as blanking-drawing-punching-trimming-edge cutting. Drawing is accomplished through stamping and requires at least two steps. During the process, drawing oil is supplied for no less than 5 seconds, with a stamping speed of 400-500 mm/s.
Lightweighting technology is also widely used in protective shell production. Precision-stamped motor housings can reduce weight by more than 60% compared to cast motor housings, achieving product lightweighting while improving product quality.
Another innovative method uses direct injection molding to produce rotor end cover protective sleeves using reinforced nylon PA66+GF20% material, with a peripheral thickness of only 0.5 mm and a negative tolerance of 0.1 mm.
06 Simulation Technology Application: Virtual Validation Drives Process Optimization
Modern protective shell production processes extensively use simulation technology for preliminary validation. Finite element software such as ANSYS Workbench can analyze the motor rotor sleeve, simulating the impact of different interference fits on the stress of the motor rotor sleeve and magnets.
The simulation analysis process includes model building, parameter setting (such as friction factor and interference fit), load application (such as inertial loads generated by rotational speed), and result analysis.
Through numerical simulation analysis, using finite element meshing, the stress distribution and deformation of the magnet's outer circle and the rotor protective sleeve's inner hole under certain interference fit conditions are studied.
Simulation technology enables engineers to predict product performance before actual machining, significantly shortening development cycles and reducing trial-and-error costs. Optimization designs based on simulation results ensure products meet strength and accuracy requirements.
07 Quality Inspection and Control: The Pursuit of Excellence
The final step in rotor protective shell production is strict quality inspection. After edge trimming, comprehensive error inspection is required. Inspection items include the perpendicularity of the rotor sleeve's top and side surfaces, roundness, the bending degree of the punched edge after trimming, wall thickness, and height.
For high-speed applications, dynamic balancing testing is crucial. The residual unbalance must be controlled within extremely strict limits to ensure smooth motor operation.
The maximum radial displacement of the rotor under different interference fits must also be strictly controlled to ensure it does not exceed the stator-rotor air gap value, avoiding friction.
High-quality products rely on whole-process quality control. From raw material inspection to final product testing, every step must be meticulously managed to produce rotor protective shells that meet the demands of high-end applications.
In the future, with advancements in materials science and processing technology, rotor protective shells will develop toward thinner, lighter, and stronger directions.
The potential application of new materials, such as carbon fiber composites, will further improve the strength-to-weight ratio of protective shells. The introduction of smart manufacturing technologies will make production processes more precise and efficient.
No matter how technology evolves, the goal remains unchanged: to provide the perfect invisible armor for frameless torque motors, enabling technological products to operate with greater precision and smoothness.
